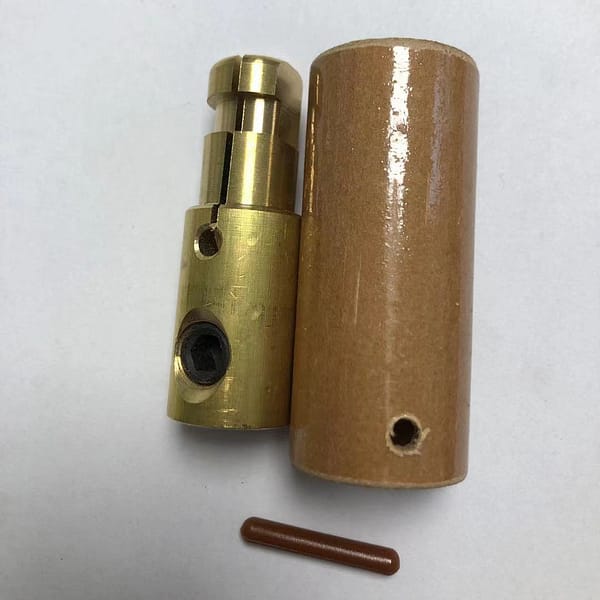

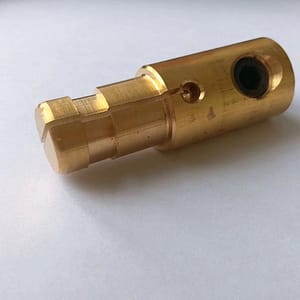

300A Brass Connector Plug (Male Camlock)
These plugs and receptacles are specifically designed for industrial applications where electrical equipment is exposed to harsh environments.
They are ideal for welding equipment, power distribution panels, patch panels and heat treating applications and are insulated for safety with reinforced thermoplasticor epoxy, or watertight elastomeric.
Electrical Ratings
120 Volts AC
Up to 315 Amps Continuous, 550 Amps Intermittent
Temperature Ratings
Standard: Up to 105°C
High Temperature: Up to 180°C (365ºF)
Materials
Accepts cable sizes: #8 AWG – 4/0
Insulator material: Reinforced thermoplastic (E1010, E1012), reinforced epoxy (E1012 High-Temperature) or elastomeric (E1012 only)
Contact material: Brass or silver-plated brass
