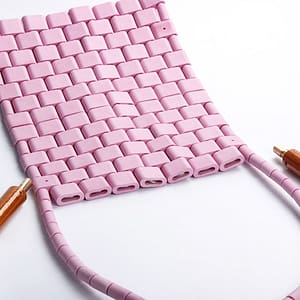

FLEXIBLE CERAMIC PAD HEATERS
Modular designs enable our Flexible Ceramic Pad Heaters to be composed in a number of configurations to suit a wide variety of shapes and sizes. Non-standard sizes are also available so please contact us for these bespoke items.
Composed of Nickel-Chrome wire inter-woven throughout the various configurations of Ceramic Beads, Brass Connector Plugs (Male Camlock) are used at the end of the Tail Beads to connect to Heat Treatment Units.
Available in 30v (1.35kW), 40v (1.8kW), 60v (2.7kw) or 80v (3.6kW), the Flexible Ceramic Pad Heaters are suitable for heat treatment of up to 1000°C.

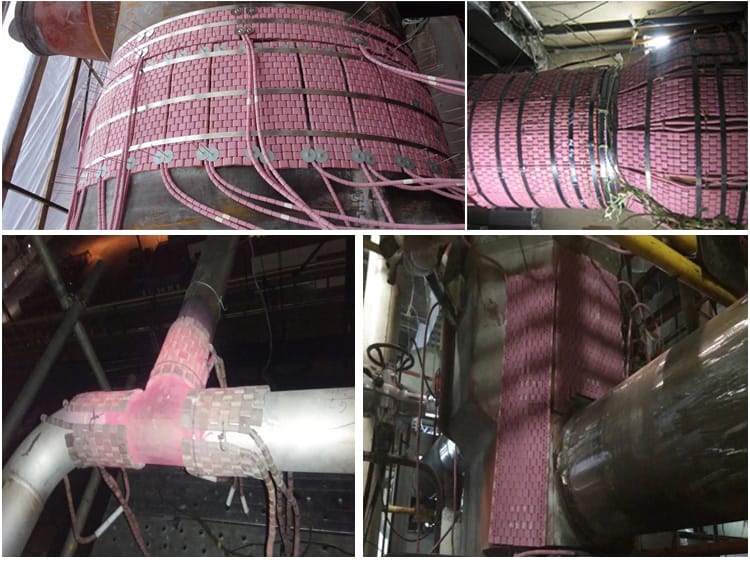

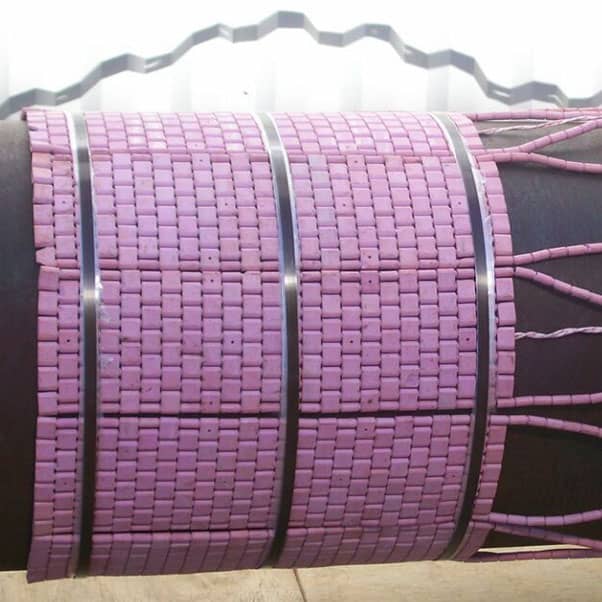

Their flexible structure allows them to be used in either a curved or flat application for the pre- and post-heat treatment of welds. Flexible Ceramic Pad Heaters should be fitted to the component by banding or other secure means. All connectors should also be fully locked.
Flexible ceramic pad heater-60v heaters
|
Type
|
Width(mm)
|
Length(mm)
|
Rating(kW)
|
Current(amp)
|
Voltage (V)
|
|
CP3-60V
|
76
|
736
|
2.7kW
|
45amp
|
60V
|
|
CP4-60V
|
102
|
533
|
2.7kW
|
45amp
|
60V
|
|
CP6-60V
|
152
|
381
|
2.7kW
|
45amp
|
60V
|
|
CP8-60V
|
203
|
279
|
2.7kW
|
45amp
|
60V
|
|
CP10-60V
|
254
|
229
|
2.7kW
|
45amp
|
60V
|
|
CP12-60V
|
305
|
178
|
2.7kW
|
45amp
|
60V
|
|
CP15-60V
|
381
|
152
|
2.7kW
|
45amp
|
60V
|
|
CP18-60V
|
457
|
127
|
2.7kW
|
45amp
|
60V
|
|
CP21-60V
|
533
|
102
|
2.7kW
|
45amp
|
60V
|
|
CP26-60V
|
660
|
89
|
2.7kW
|
45amp
|
60V
|
|
CP50-60V
|
1270
|
44
|
2.7kW
|
45amp
|
60V
|
Flexible ceramic pad heater-80v heaters
|
Type |
Width*Length(mm) |
Rating- Current |
Voltage |
|
CP4-80V |
102*737 |
3.6kW- 45amp |
80 volt |
|
CP6-80V |
152*501 |
3.6kW- 45amp |
80 volt |
|
CP8-80V |
203*368 |
3.6kW- 45amp |
80 volt |
|
CP10-80V |
254*368 |
3.6kW- 45amp |
80 volt |
|
CP12-80V |
305*248 |
3.6kW- 45amp |
80 volt |
|
CP15-80V |
380*203 |
3.6kW- 45amp |
80 volt |
|
CP18-80V |
457*165 |
3.6kW- 45amp |
80 volt |
|
CP21-80V |
535*145 |
3.6kW- 45amp |
80 volt |
|
CP24-80V |
610*125 |
3.6kW- 45amp |
80 volt |
|
CP29-80V |
740*100 |
3.6kW- 45amp |
80 volt |

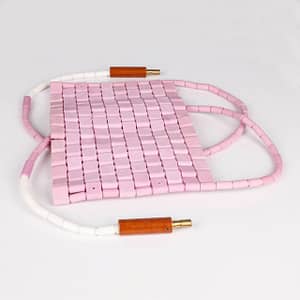

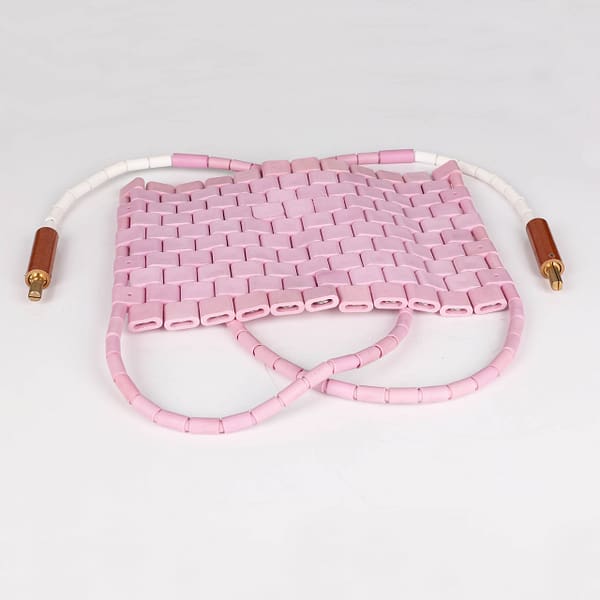

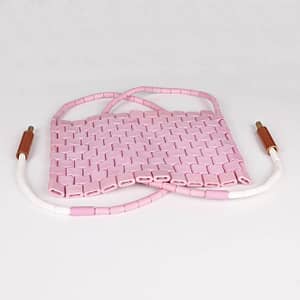

Detail photoes
 |
 |
 |
 |
Related Accessories
 |
 |
 |
| Alumina Content: 95 % Bulk Density Fired: 3.7 MG/M3 Grain Size: 6 um
Compressive strength: 2000 Mpa
Thermal Conductivity: 21 W/ m3
|
Camlock connectors 60A Camlock connectors 300A |
A heating element repair kit comes with 80/20 (19 multi-strand) Nickel/Chrome wire, nickel 212 cold tail wire (tigged) and two male 60 amp twistlocks complete. |
