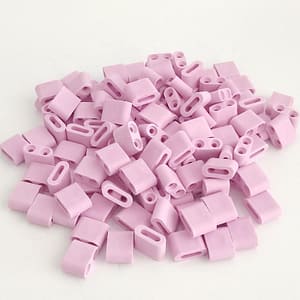

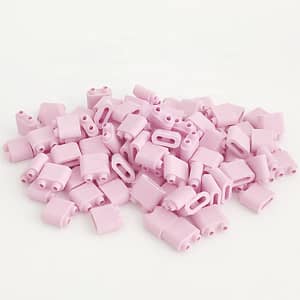

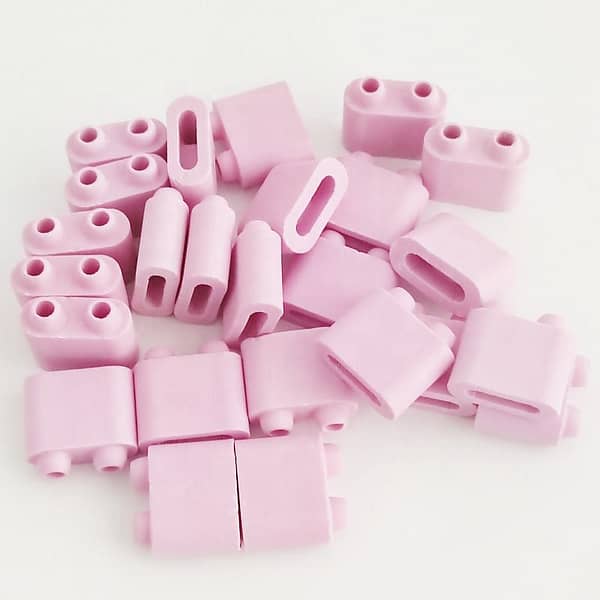

Ceramic Heating Beads For Ceramic Heater Pads/pwht

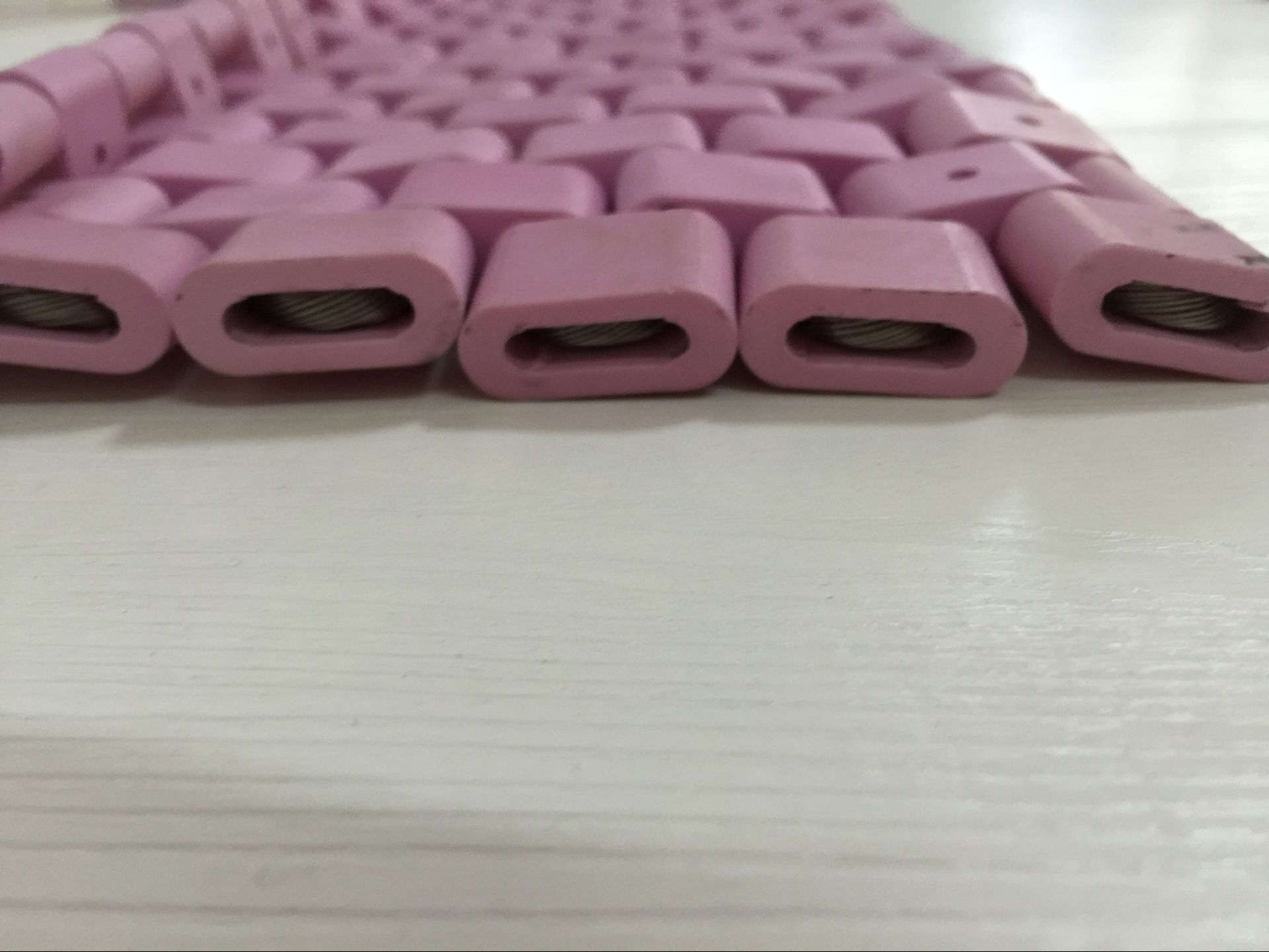

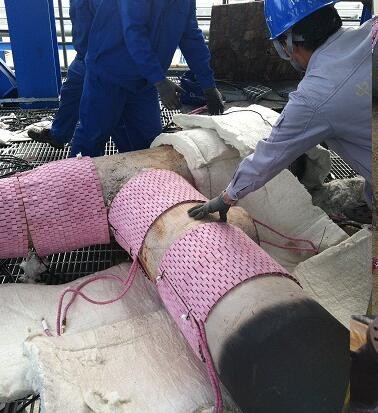

The Flexible Insulated Preheater is suitable for low temperature preheat treatment (up to 250°C). The Flexible Ceramic Pad Heater is mounted onto a Insulated Blanket which is surrounded by a Stainless Steel Mesh. The stainless steel backing allows the pad to be applied quickly to metal surfaces using magnetic fixings or by banding. The Tail Beads and 60A Brass Connector Plug (Male Camlock) Complete Set .
|
Product Name
|
Ceramic Beads Used For Flexible Ceramic Heating Pad /Ceramic Pad Fudi Company
|
|
Colour
|
Pink
|
|
Material
|
Aluminium Oxide 95.1%
|
|
Water Absorption Rate
|
0.01% (by wt.)
|
|
Compression Strength
|
1280 Mpa @ 25°C
|
|
Dielectric Strength
|
15.18 MV/m
|
|
Temperature Shock Test
|
@ 800°C 15 times (max. 1000°C)
|
|
Usage
|
Ceramic Bead Used For Flexible Ceramic Heating Pad /Ceramic Pad
|
|

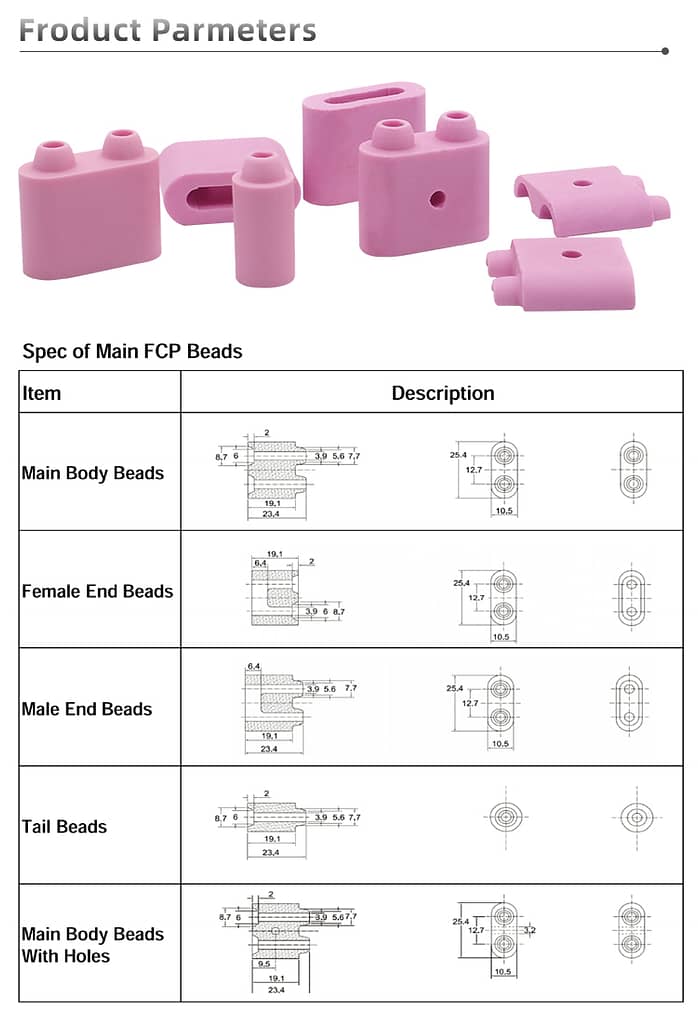

Specifications:
Main Body Beads
Female End Beads
Male End Beads
Tail Beads
Main Body Beads With Holes
|
 |
 |
Advantages:
1). Excellent insulation, security.
2). Excellent high pressure resistance 3). Corrosion resistance |
|
Main applications:
1). Shaft, Plunger
2). High-pressure cleaning machines 3). Sealing structure 4). Auto mobile industry 5). Oil drilling equipment 6). Insulation parts in electrical equipment 7). Ceramic knife 8). Ceramic hair clipper spare parts |
 |
 |
 |
 |
Should any inquiry, welcome contact us by email: [email protected]
