Ceramic Pad Heating Elements| CP10H
- Pre and post-weld heat treatment
- Nickle chrome wire
- Flexible ceramic heating pad
- Multiple sizes

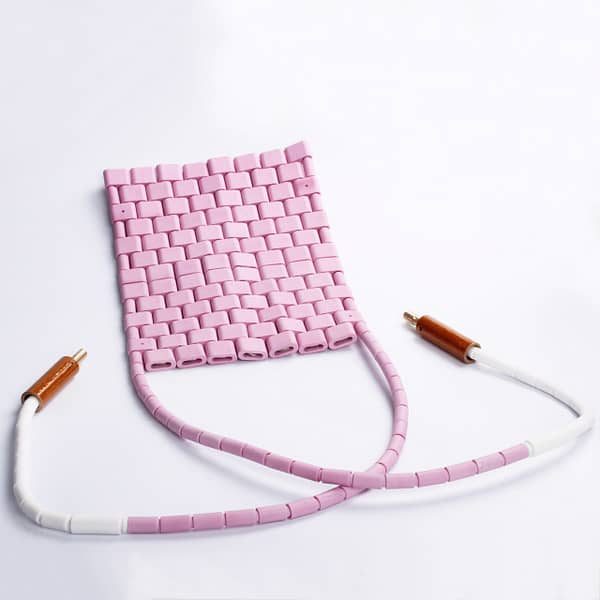

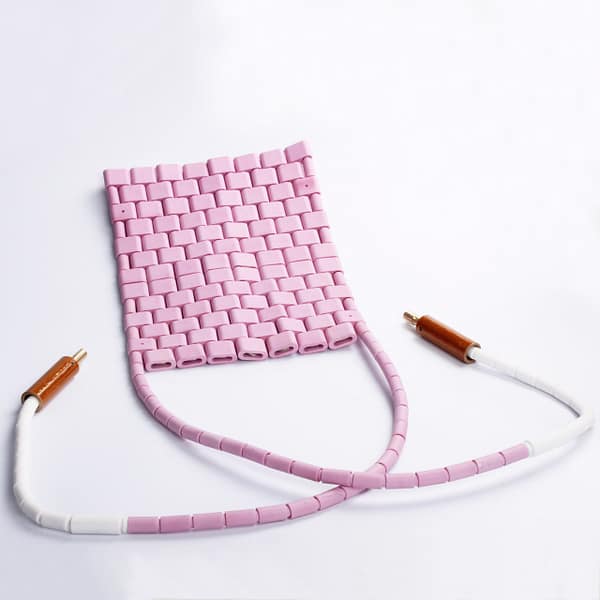

Flexible, ceramic pad heating element for pre and post weld heat treatment (up to 800°C) of pipe welds and fabrications.
|
List Reference
|
Power(KW)
|
Current(Amp)
|
Description
|
Size Inches(Approx)
|
|
CP3-60V
|
2.7
|
45
|
Preheater
|
3*29
|
|
CP4-60V
|
2.7
|
45
|
Preheater
|
4*21
|
|
CP6-60V
|
2.7
|
45
|
Thick Wall Pad
|
6*15
|
|
CP8-60V
|
2.7
|
45
|
Pad Element
|
6*11
|
|
CP10-60V
|
2.7
|
45
|
Pad Element
|
10*9
|
|
CP12-60V
|
2.7
|
45
|
3″Diameter Pipe
|
12*7
|
|
CP15-60V
|
2.7
|
45
|
4″Diameter Pipe
|
15*6
|
|
CP18-60V
|
2.7
|
45
|
Strip
|
18*5
|
|
CP21-60V
|
2.7
|
45
|
6″Diameter Pipe
|
21*4
|
|
CP26-60V
|
2.7
|
45
|
Long Strip
|
26*3 1/2
|
|
CP50-60V
|
2.7
|
45
|
Snake
|
50*2
|
|
CP3H-80V
|
3.6
|
45
|
Preheater
|
3*39
|
|
CP4H-80V
|
3.6
|
45
|
Preheater
|
4*29
|
|
CP6H-80V
|
3.6
|
45
|
Thick Wall Pad
|
6*20
|
|
CP8H-80V
|
3.6
|
45
|
Pad Element
|
8*15
|
|
CP10H-80V
|
3.6
|
45
|
Pad Element
|
10*12
|
|
CP12H-80V
|
3.6
|
45
|
3″Diameter Pipe
|
12*10
|
|
CP15H-80V
|
3.6
|
45
|
4″Diameter Pipe
|
15*8
|
|
CP18H-80V
|
3.6
|
45
|
Strip
|
18*7
|
|
CP21H-80V
|
3.6
|
45
|
6″Diameter Pipe
|
21*6
|
|
CP24H-80V
|
3.6
|
45
|
Strip
|
24*5
|
|
CP29H-80V
|
3.6
|
45
|
Strip
|
29*4
|
|
CP36H-80V
|
3.6
|
45
|
Long Strip
|
26*3 1/2
|
|
CP72H-80V
|
3.6
|
45
|
Snake
|
72*2
|
|
Standard Accessories
|
|||
|
1
|
ceramic bead
|
5
|
Heating Wire & Cold Tail Wire
|
|
2
|
Connector
|
6
|
Welding Cable
|
|
3
|
Welding Cable Plugs & Sockets Connector
|
7
|
Thermocouple Wire
|
|
4
|
Thermoplastic & Ceramic
|
8
|
Compensating Wire
|
