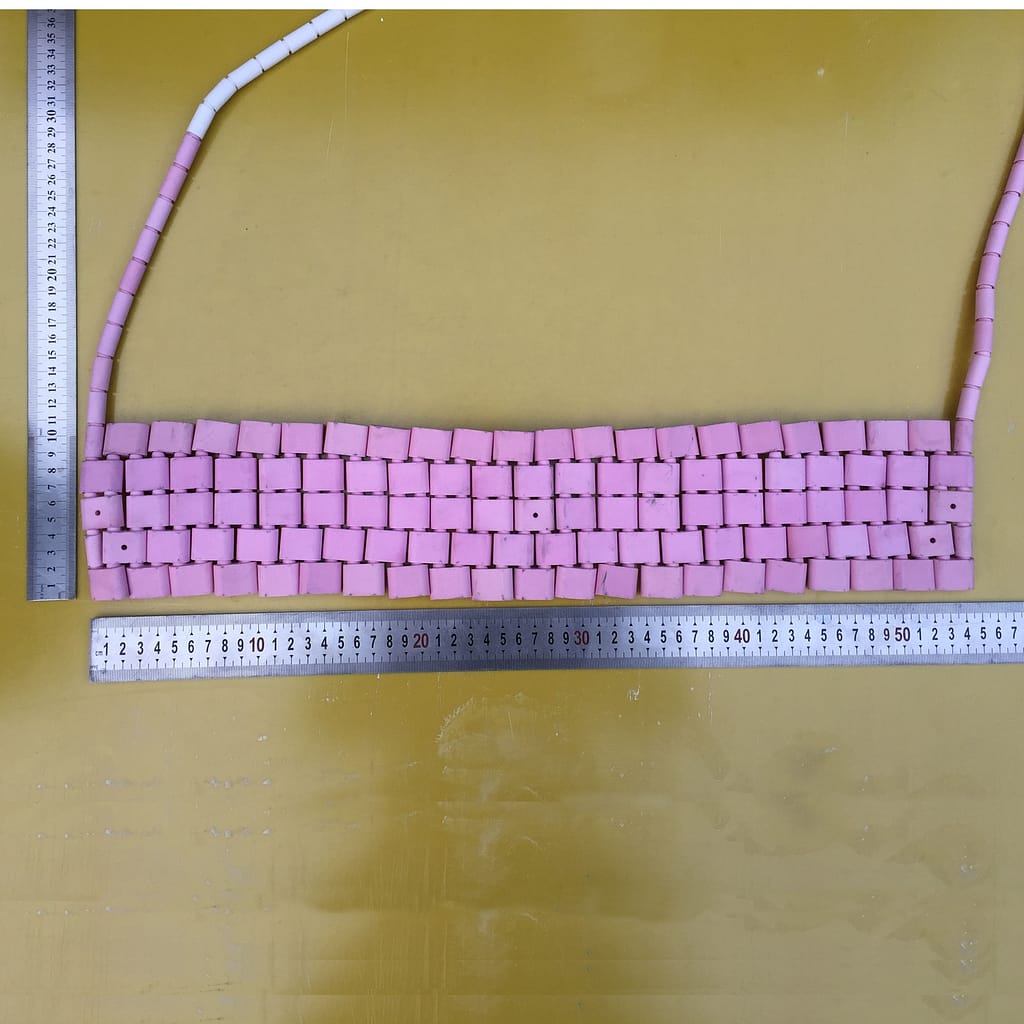

CP21 ceramic pad heater flexible 2.7kva 60v
FLEXIBLE CERAMIC PAD HEATERS
Modular designs enable our Flexible Ceramic Pad Heaters to be composed in a number of configurations to suit a wide variety of shapes and sizes. Non-standard sizes are also available so please contact us for these bespoke items.
Composed of Nickel-Chrome wire inter-woven throughout the various configurations of Ceramic Beads, Brass Connector Plugs (Male Camlock) are used at the end of the Tail Beads to connect to Heat Treatment Units.
Available in 30v (1.35kW), 40v (1.8kW), 60v (2.7kw) or 80v (3.6kW), the Flexible Ceramic Pad Heaters are suitable for heat treatment of up to 1200°C.
|
Type |
Width*Length(mm) |
Rating- Current |
Voltage |
|
CP3-60V |
75 *724 |
2.7kW- 45amp |
60 volt |
|
CP4-60V |
102 *533 |
2.7kW- 45amp |
60 volt |
|
CP6-60V |
150 *330 |
2.7kW- 45amp |
60 volt |
|
CP8-60V |
205 *250 |
2.7kW- 45amp |
60 volt |
|
CP10-60V |
254*229 |
2.7kW- 45amp |
60 volt |
|
CP12-60V |
305 *184 |
2.7kW- 45amp |
60 volt |
|
CP15-60V |
380*146 |
2.7kW- 45amp |
60 volt |
|
CP18-60V |
457*127 |
2.7kW- 45amp |
60 volt |
|
CP21-60V |
535*102 |
2.7kW- 45amp |
60 volt |
|
CP24-60V |
610*83 |
2.7kW- 45amp |
60 volt |
|
CP26-60V |
740 *83 |
2.7kW- 45amp |
60 volt |
