FLEXIBLE CERAMIC HEATING PADS – FCP for pre- and post-weld heat treatment (up to 800°C) for pipe welding and manufacturing.

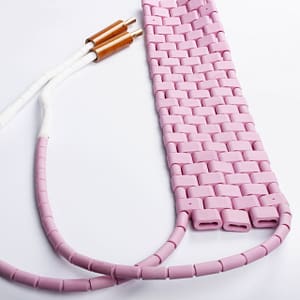

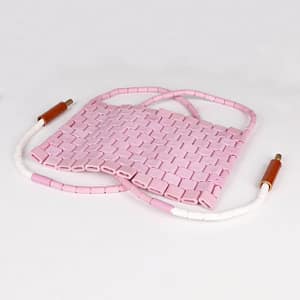

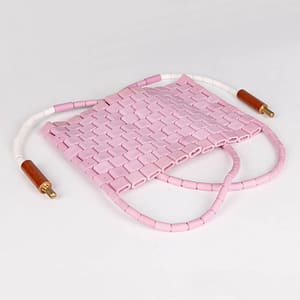

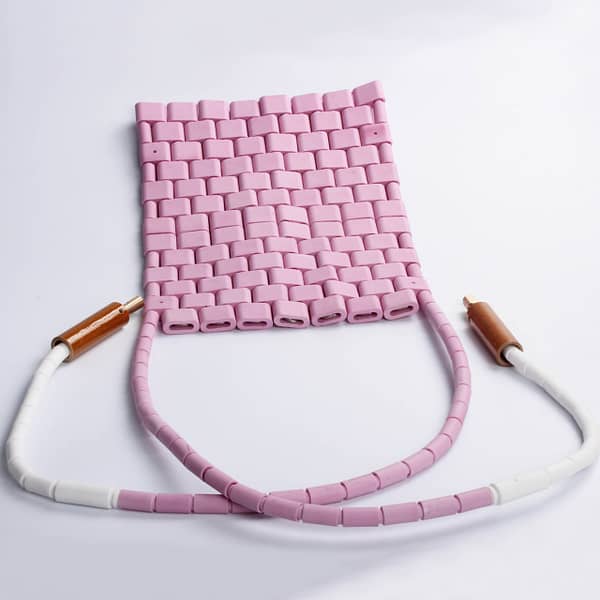

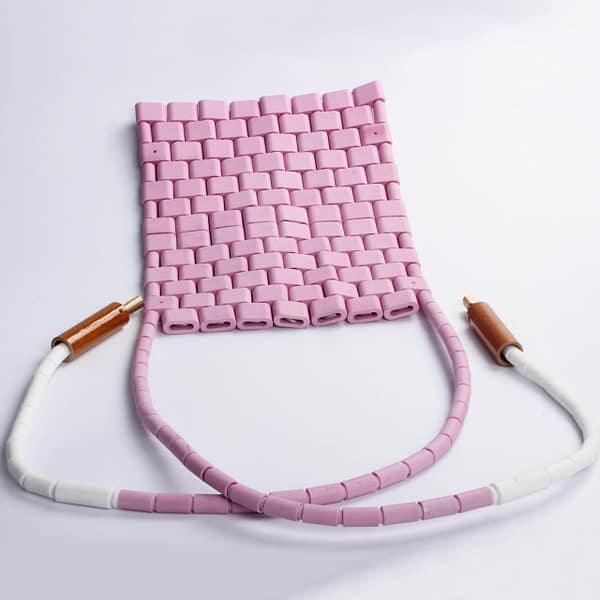

FLEXIBLE CERAMIC HEATING PADS – FCP

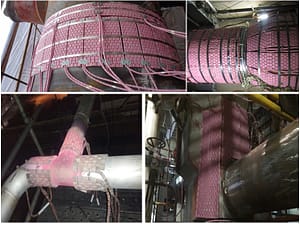

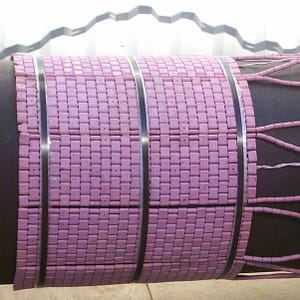

FLEXIBLE CERAMIC PAD – SETUP FOR HEAT TREATMENT

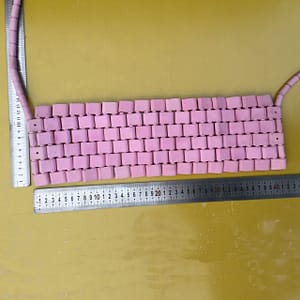

FLEXIBLE CERAMIC HEATER – SIZES ( 60 /16 NICHROME WIRE )
Specification (60/16 Core Wire):
(All dimensions are nominal)
Construction:Our ceramic pad (FCP) heating elements use the highest quality materials. Reduce working hours |
 |

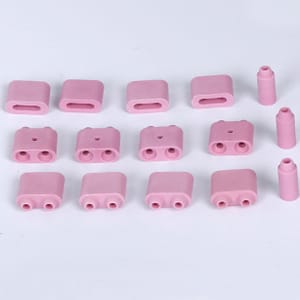

Ceramic beadsHigh resistance to thermal shock and physical shock |
Advantage:Reduce working hours |
 |
 |
Physical characteristics:Alumina content: 95% |
FLEXIBLE CERAMIC HEATER – SELECTION GUIDE
Heating Element Selection Guide:
Specification (80/20 Core Wire):
To be used as a guide only. Reference should always be made to specific code or specification heated width requirements.
| Type Ref. | Width (mm) | Length (mm) | Voltage (V) | Power (KW) | Type Ref. | Width (mm) | Length (mm) | Voltage (V) | Power (KW) |
| CP3 | 75 | 670 | 60 | 2.7 | CP3 | 75 | 991 | 80 | 3.6 |
| CP4 | 100 | 500 | 60 | 2.7 | CP4 | 102 | 737 | 80 | 3.6 |
| CP6 | 150 | 335 | 60 | 2.7 | CP6 | 152 | 501 | 80 | 3.6 |
| CP8 | 205 | 250 | 60 | 2.7 | CP8 | 203 | 368 | 80 | 3.6 |
| CP10 | 255 | 205 | 60 | 2.7 | CP10 | 254 | 368 | 80 | 3.6 |
| CP12 | 305 | 165 | 60 | 2.7 | CP12 | 305 | 248 | 80 | 3.6 |
| CP15 | 380 | 145 | 60 | 2.7 | CP15 | 380 | 203 | 80 | 3.6 |
| CP16 | 410 | 125 | 60 | 2.7 | CP18 | 457 | 465 | 80 | 3.6 |
| CP21 | 525 | 105 | 60 | 2.7 | CP21 | 535 | 145 | 80 | 3.6 |
| CP24 | 600 | 85 | 60 | 2.7 | CP24 | 610 | 125 | 80 | 3.6 |
| CP48 | 1200 | 45 | 60 | 2.7 | CP36 | 915 | 80 | 80 | 3.6 |

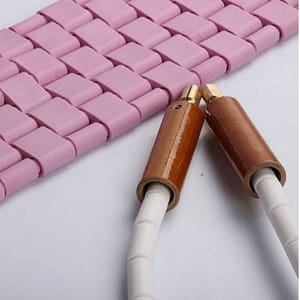

The heating element is butt welded on the ceramic cold tail to eliminate air-conditioning
The heater core wire eliminates the frequent cold tail/core wire connection failure
See low-quality heaters using steel ferrules.
Any pipe size or pipe configuration can cover a wide range
FCP heating element, so you can get the correct heating power
Used for successful heat treatment of pipeline welding or other manufacturing.
A series of flexible ceramic mat heating elements are manufactured
Used to select the rated power of the standard voltage.
If you need any special heating element configuration, voltage or rated power,
Fudi electric will use their heat treatment engineering expertise to provide you with
Customize heating elements to meet your exact needs.
If handled properly, Stork FCP heating elements can be used approximately
Repeat 50 times at temperatures up to 1050ºC (1922ºF). Fudi electric can
Heating element that can provide higher temperature if needed
Repeatedly at temperatures up to 1200ºC
