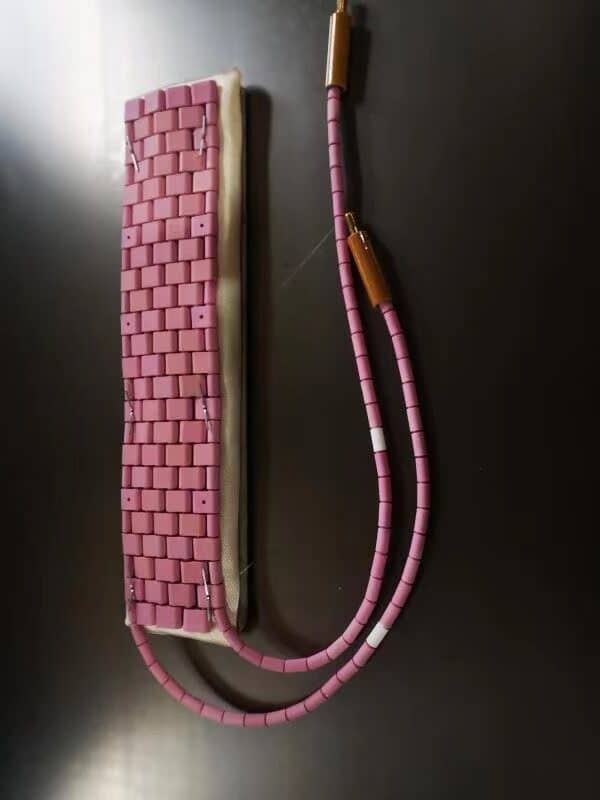

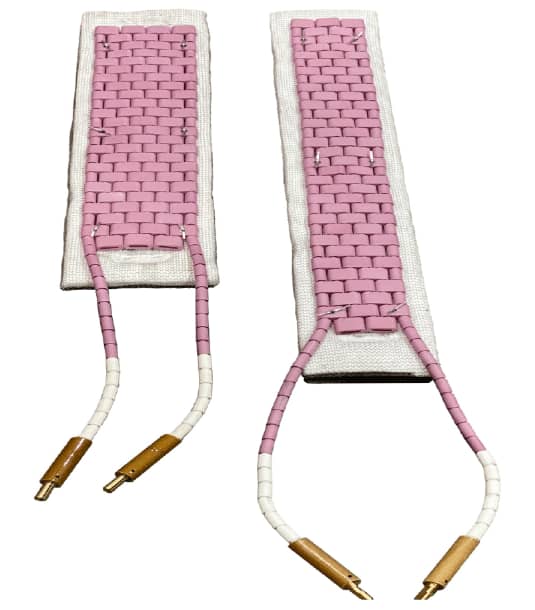

The Flexible Insulated Preheater is suitable for low temperature preheat treatment (up to 250°C). The Flexible Ceramic Pad Heater is mounted onto a Insulated Blanket which is surrounded by a Stainless Steel Mesh. The stainless steel backing allows the pad to be applied quickly to metal surfaces using magnetic fixings or by banding. The Tail Beads and 60A Brass Connector Plug (Male Camlock) Complete Set .
Dimensions of Body: customized
Length of Tail Bead and Brass Connector: 465mm
Weight: 2.8kg
Voltage: 60v
Power: 2.7kW
Maximum Working Temperature: 250°C
Wires: 80/20 Nickel-Chrome and Nickel Cold Tail
Brass Connectors: 2 x 60A Brass Connector Plug (Male Camlock) Complete Set
Backing Plate: Stainless Steel
Mesh: Stainless Steel
FLEXIBLE CERAMIC PAD HEATERS
Modular designs enable our Flexible Ceramic Pad Heaters to be composed in a number of configurations to suit a wide variety of shapes and sizes. Non-standard sizes are also available so please contact us for these bespoke items.
Composed of Nickel-Chrome wire inter-woven throughout the various configurations of Ceramic Beads, Brass Connector Plugs (Male Camlock) are used at the end of the Tail Beads to connect to Heat Treatment Units.
Available in 30v (1.35kW), 40v (1.8kW), 60v (2.7kw) or 80v (3.6kW), the Flexible Ceramic Pad Heaters are suitable for heat treatment of up to 1000°C.
Their flexible structure allows them to be used in either a curved or flat application for the pre- and post-heat treatment of welds. Flexible Ceramic Pad Heaters should be fitted to the component by banding or other secure means. All connectors should also be fully locked.
Should any comments, welcome contact us with directly.
