Product Name
|

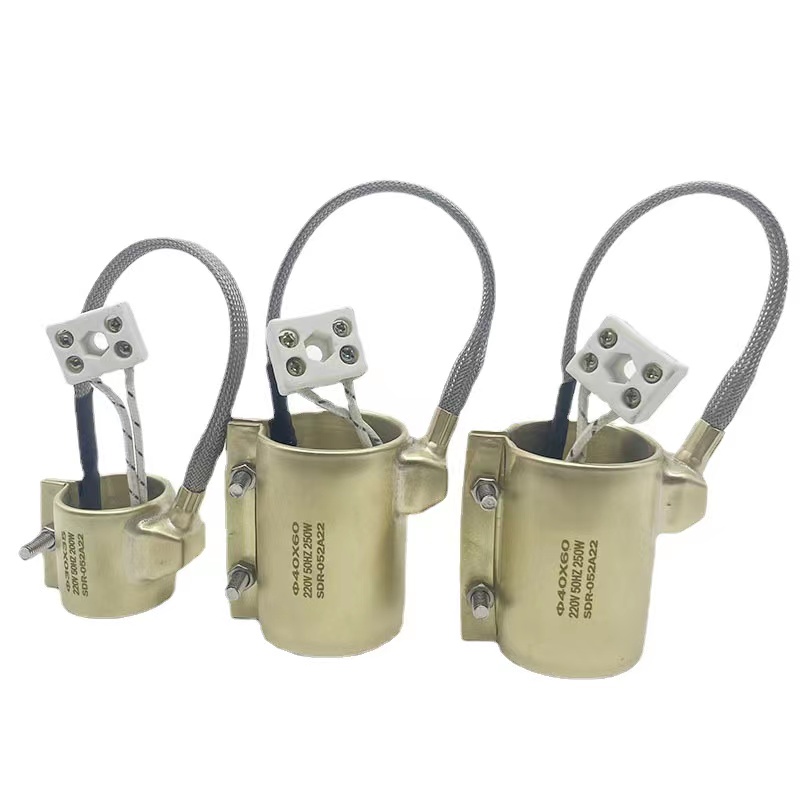

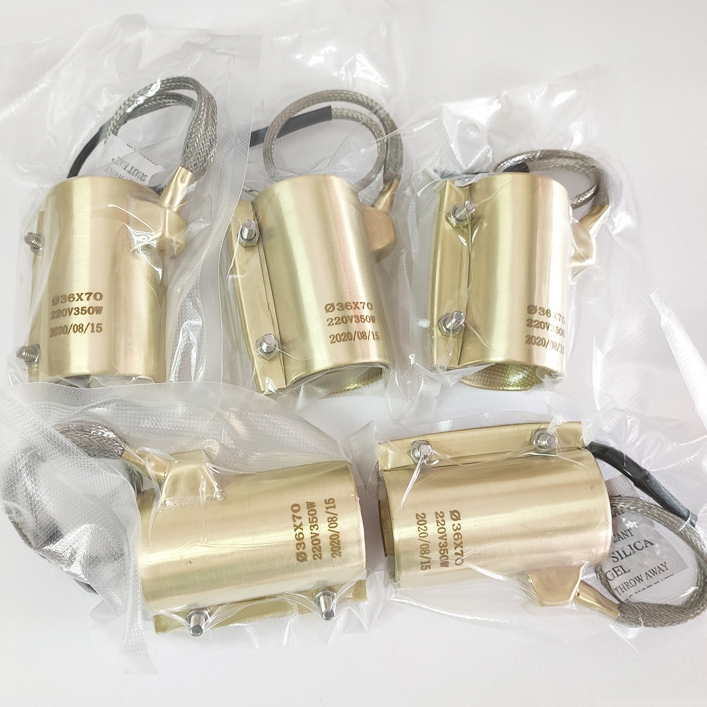

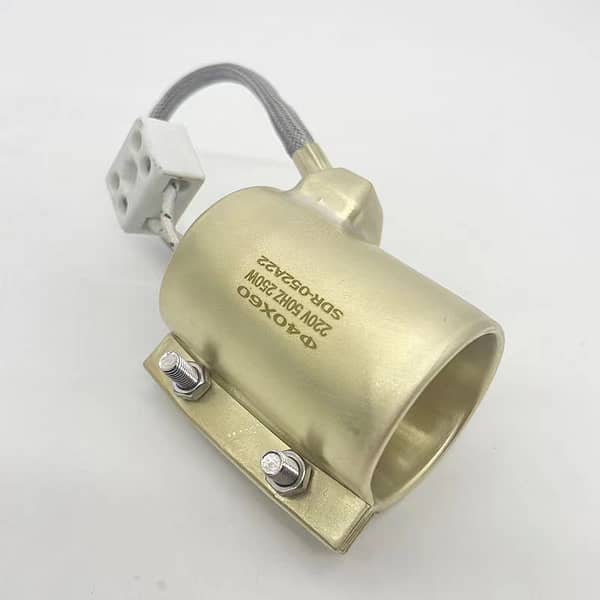

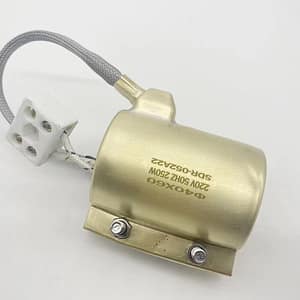

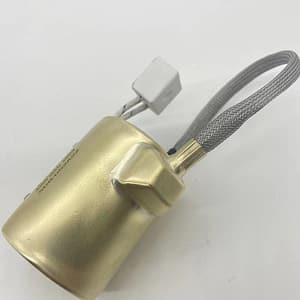

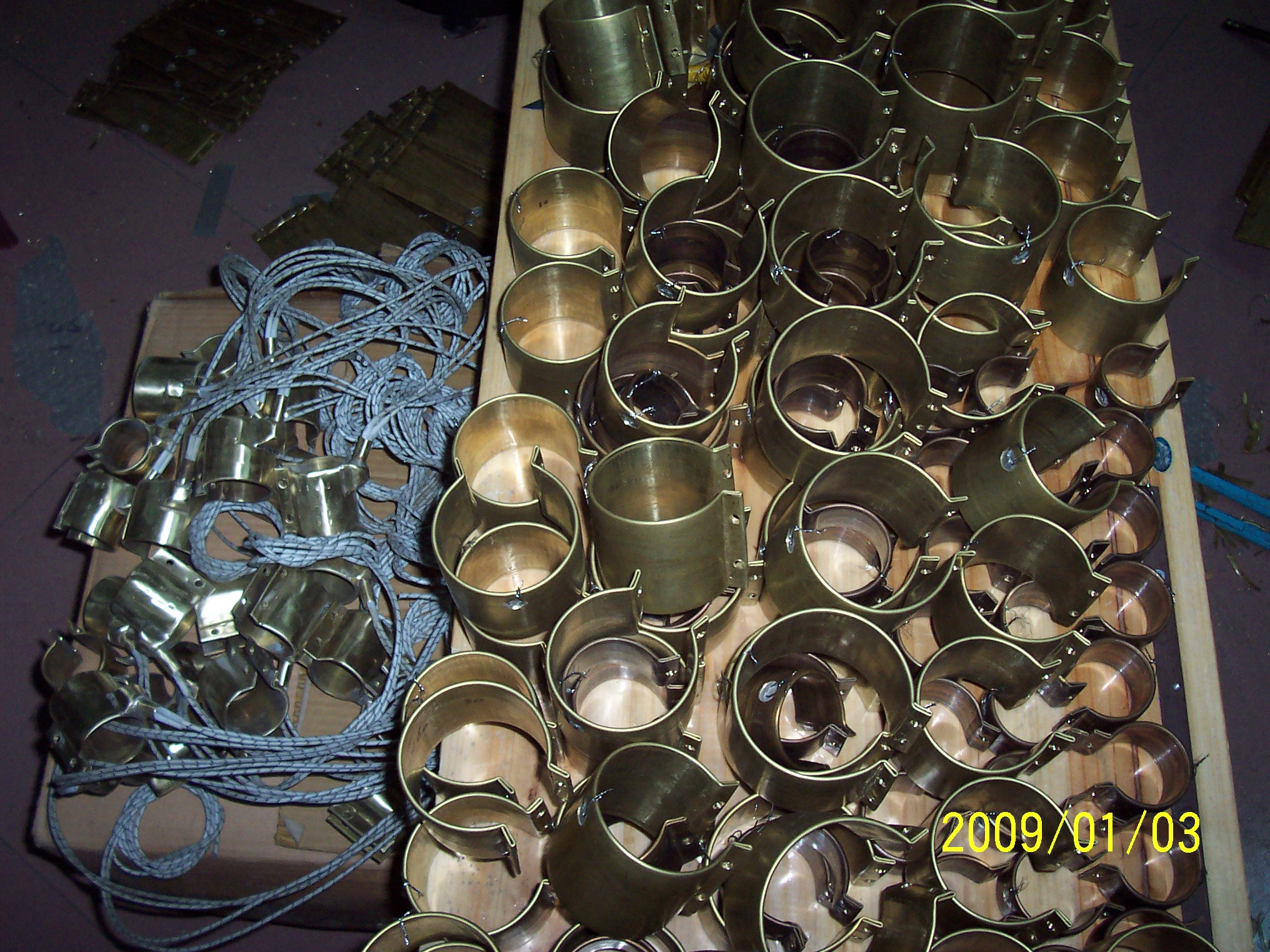

Plastic Extruder Machine Heater Electric Nozzle Band Heaters
|
|
Sheath Material
|
Brass cover ,High Temperature Plate
|
|
Connection Method |
Metal box/screw post terminals/High Temperature Plug
High temperature cable/Ceramic block
|
|
Nominal Wall Thickness
|
Premium Heat : ½”
Power Saver : ½” + 5/8″ (Outer Insulation) Power Saver PLUS :½” + 1.5″ ( Outer Insulation) |
|
Power Tolerance
|
+5% to -10%
|
|
Resistance
|
-5% to +10%
|
|
Gap Between the Clamping Edge
|
5 – 10mm
|
|
Insulation Resistance (Cold)
|
≥20 MΩ
|
|
Heating Elements (coil)
|
NiCr 80:20
|
|
Lead Wire Terminals |
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat
shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
|
Warranty
|
one year / 12 monthes
|
Specifications:
Shape:Band,flat,strip.etc customized. holes available. Size:Diameter≥25mm , length≥20mm or customized Wire:Cr20Ni80 resistance wire Housing:Stainless steel Insulation:Mica sheets
Features:
1.High Temperature Resistance
2.Excellent Insulating Property
3.Efficient Thermal Conductivity
4.Significant Energy-saving
5.Customized Electirc Band Heater and Plate
2.Excellent Insulating Property
3.Efficient Thermal Conductivity
4.Significant Energy-saving
5.Customized Electirc Band Heater and Plate
Application:
1. Injection molding 2. Blow-molding 3. Plastic extrusion 4. Container, pipe, or tank heating 5. Pharmaceutical applications 6. Applications in the food industry

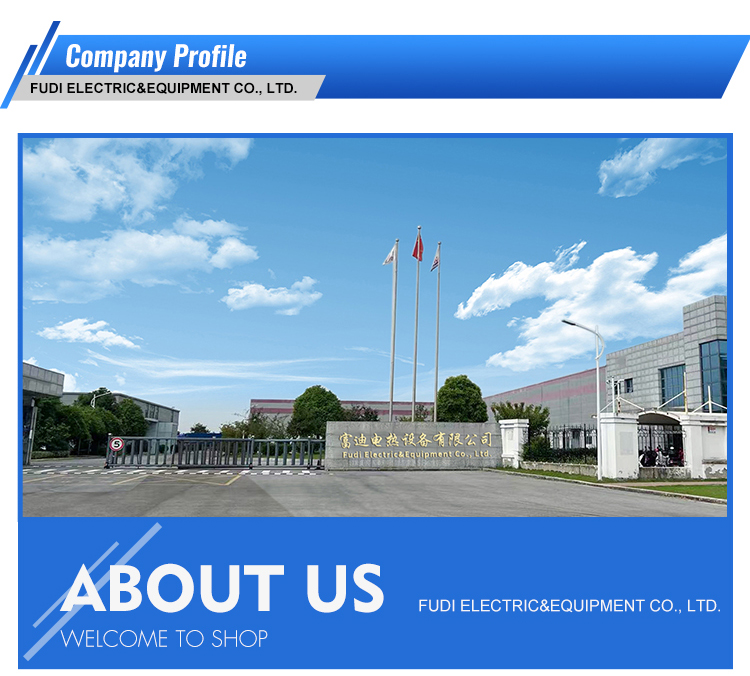

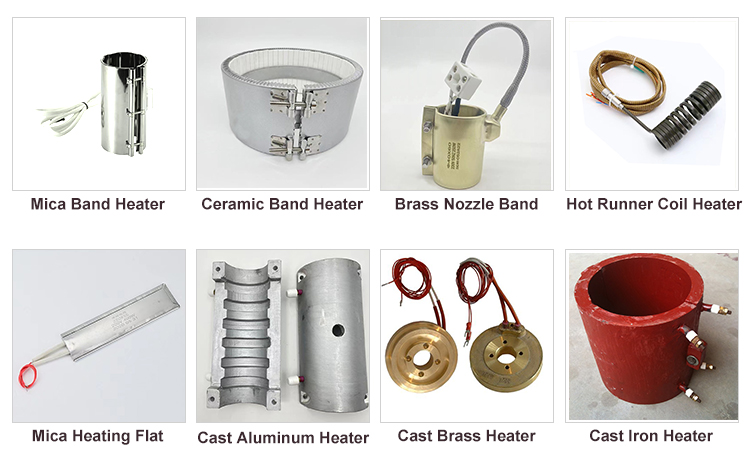

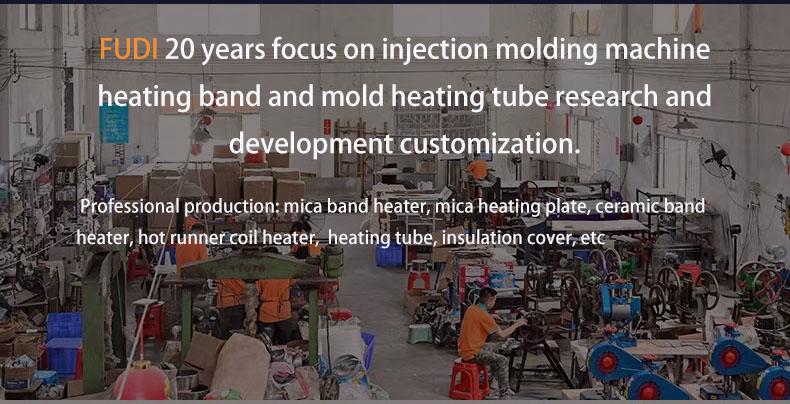

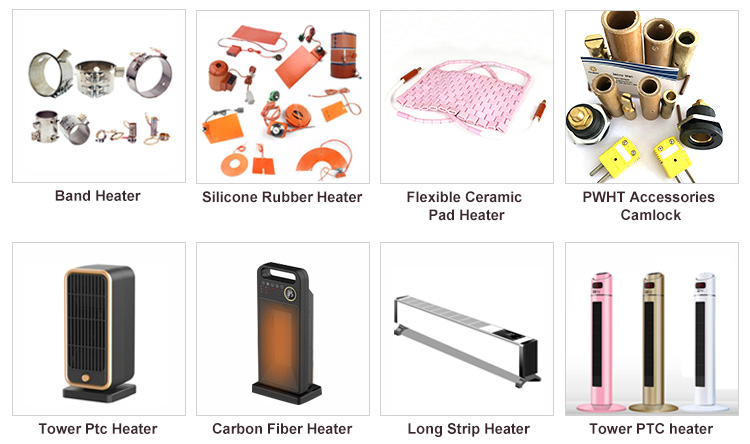

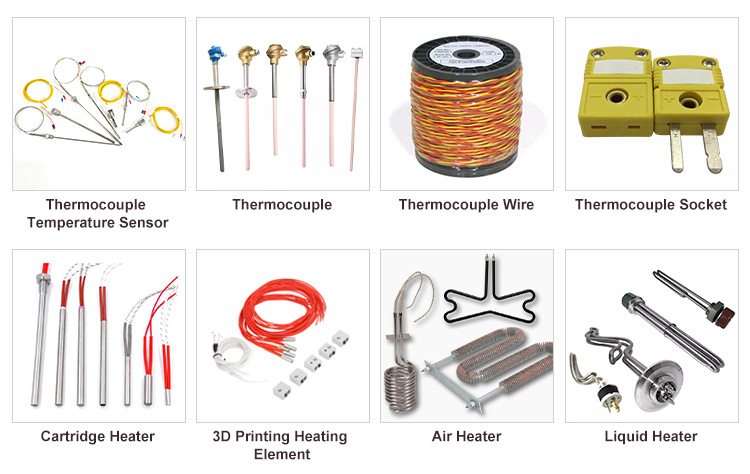

Fudi Electric&Equipment Co., Ltd. is one of the most leading and advanced electric heating accessories companies in China, integrating the design, manufacture and marketing of high-tech heating elements. Brand name “FID” was formed in 1983 which more than 30 years ago. We specialize in Flexible Ceramic Pad Heater, PWHT accessories , slicone rubble heater, cartridge heater, electric tubular heater, electric bands and thermocople. We have developed advanced skills and technologies. Our products are widely used in electricity, information, power, automobile and other fields. Range of PWHT Flexible Ceramic Pad Heater : 30v flexible pad heater, 40v ceramic heating pad, 60v flexible ceramic pad heater, 80v ceramic blanket heater, channel heaters, flexible insulated preheaters, LCD heaters, etc. “FUDI” strictly complies with ISO9001 quality management system. Our products are widely used in aerospace, mining machinery, lift, power, paper making, laboratory, nonferrous metal processing, electronics processing, textile machinery and other industries, FUDI provides wholesale and retail services. We have the largest stocks in China, professional manufacturing experience, most complete industrial flexible pad heater , rock bottom price, best service, speedy delivery. Welcome to contact us for cooperation! Also welcome to visit us!
