PWHT Accessories Cable Thermocouple Type K 600C ANSI
Red Yellow 22SWG Thermocouple cable with Vitreous Silica insulation type K extension thermocouple wire
Thermocouple Wires Type K
Thermocouple Wire provides accuracy within ±1.5°C. Available in:
• Type K, 2 x 0.65mm NiCr/NiSi
• Type KX, 2 x 7/0.2mm NiCr/NiSi with maximum working temperatures of 800°C and 105°C respectively
Thermocouple Wire provides accuracy within ±1.5°C. Available in:
• Type K, 2 x 0.65mm NiCr/NiSi
• Type KX, 2 x 7/0.2mm NiCr/NiSi with maximum working temperatures of 800°C and 105°C respectively
Type K thermocouple wire,which welded to the workpiece by thermocouple attachment unit,outjacket is high temperature glass fiber
cloth, Accurate temperature signal transduction to PWHT equipment and recorder.
cloth, Accurate temperature signal transduction to PWHT equipment and recorder.

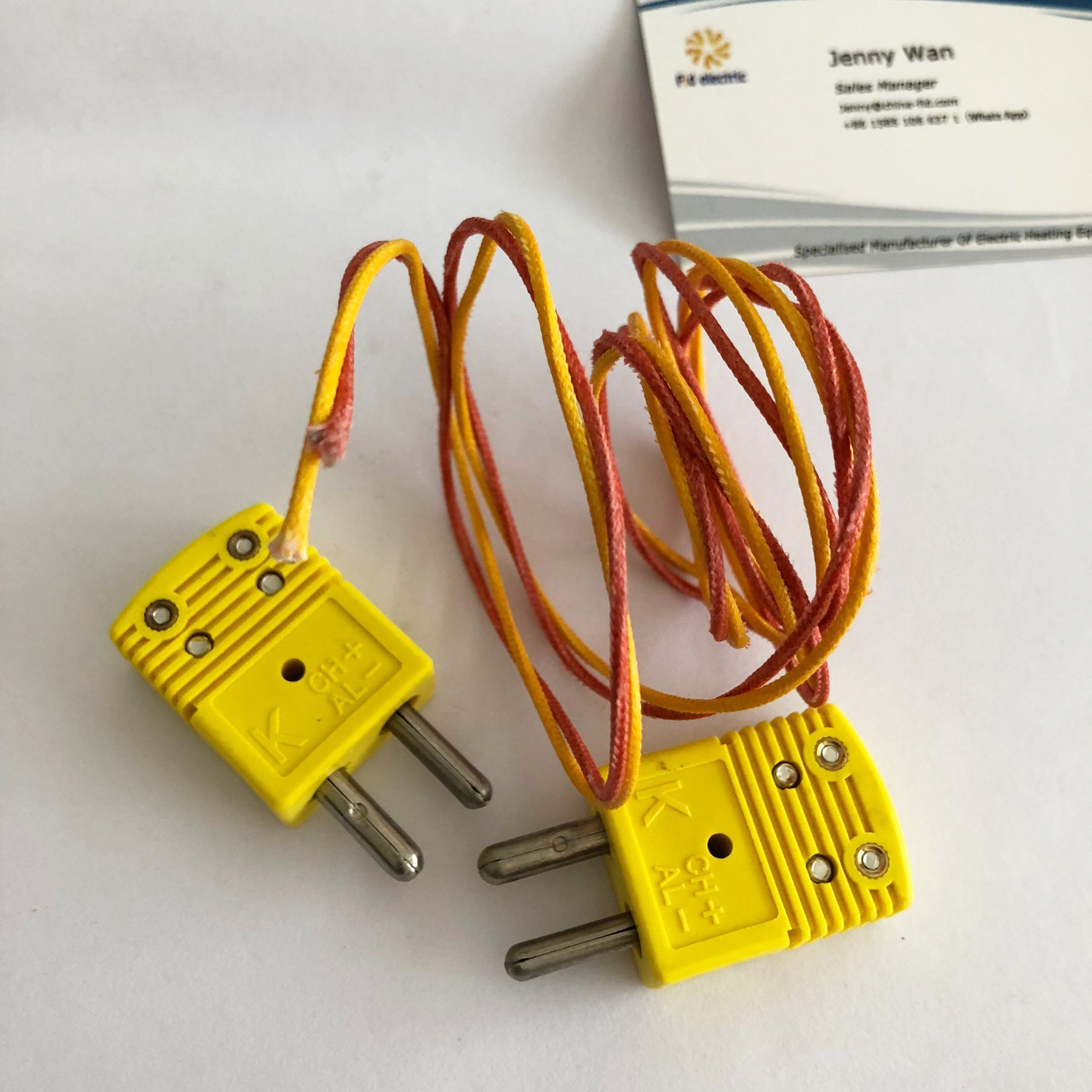

Two core conductors insulated by glass-fiber twised together，Type K thermocouple wire, insulated with high temperature glass
braid, is used to convert the thermal energy at the hot junction of thermocouple to an electrical mV signal which can then be used
by temperature control and recording instruments to accurately record and control the temperature of the item being heat treated.

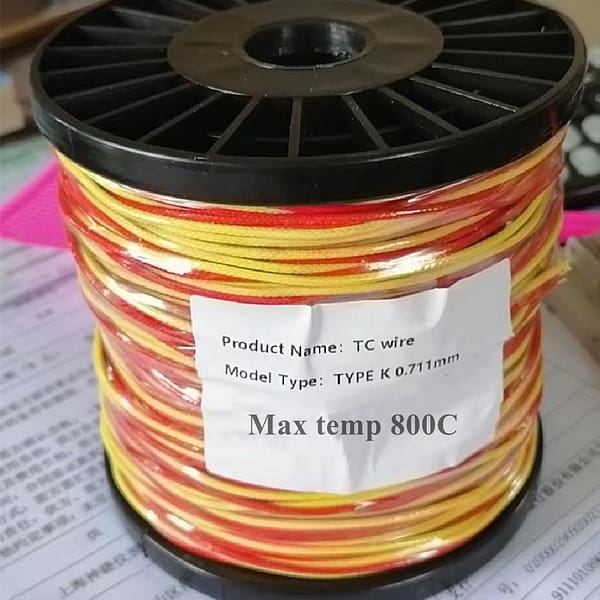

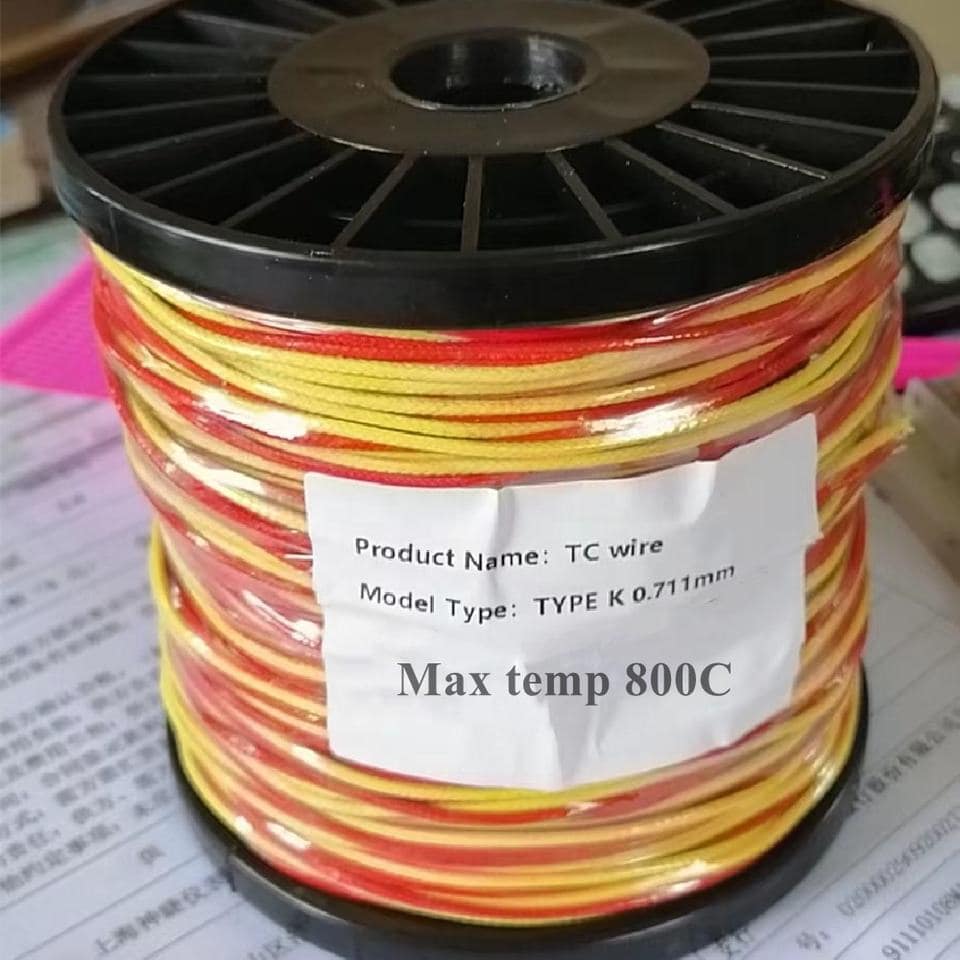

Material :2*0.71mm NiCr /NiSi, Max temperature : 800℃ Jacket Colour : Yellow (+)/Red (-)

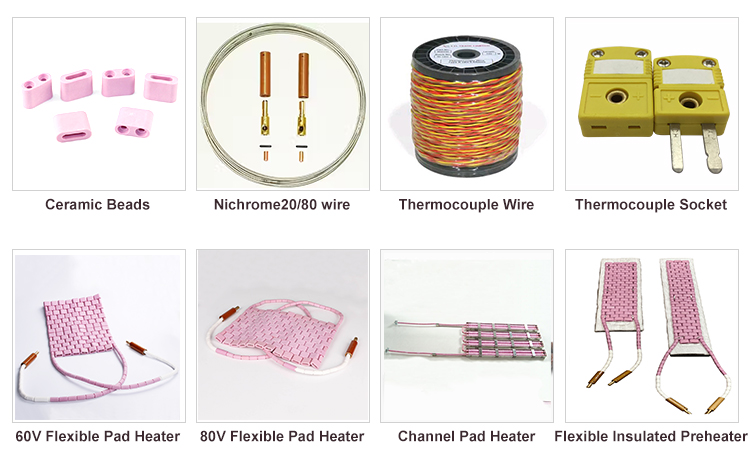

We also suppling variety of cables and wires are used throughout the heat treatment process; either for thermocouples/temperature control or
recording, or to supply electrical energy throughout the circuits.
Nickel-Chrome wires and Nickel Cold Tail wire come in rolls of 500m while the Thermocouple Wires, Heater Distribution Cables and
Compensating Cables all come in rolls of 100m.
4-bank Nickel-Chrome Iron Wire is supplied with 10pc per set whilst Splitter Cables and Triple Cable Sets are supplied in 1m and
30m lengths respectively.
recording, or to supply electrical energy throughout the circuits.
Nickel-Chrome wires and Nickel Cold Tail wire come in rolls of 500m while the Thermocouple Wires, Heater Distribution Cables and
Compensating Cables all come in rolls of 100m.
4-bank Nickel-Chrome Iron Wire is supplied with 10pc per set whilst Splitter Cables and Triple Cable Sets are supplied in 1m and
30m lengths respectively.
|

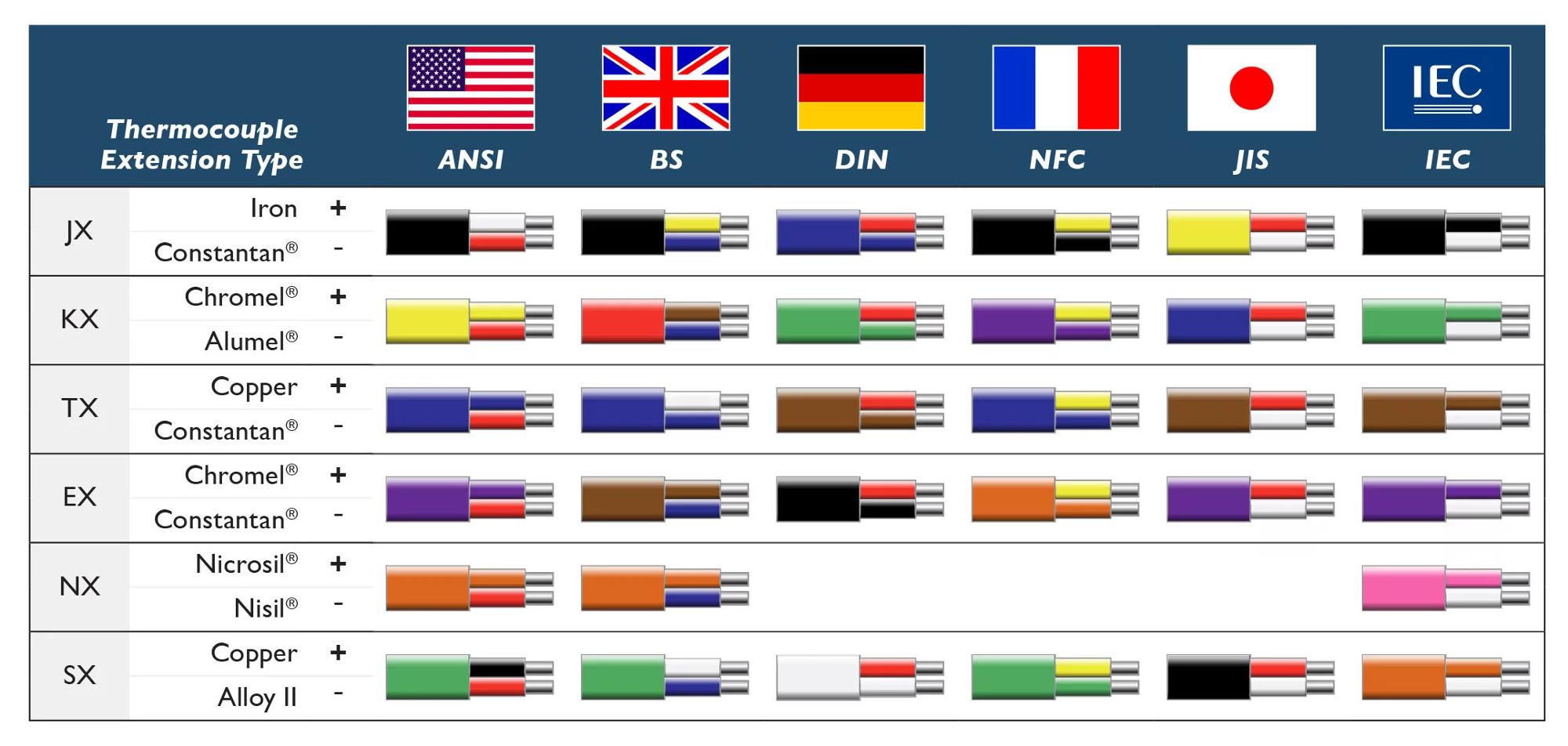

Thermocouple Wire color codes
|
|
|
Grade:
|
Extension Grade or Thermocuple Grade
|
|
temperature range, deg. c
|
-50… +400
|
|
type of coductor:
|
K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
|
|
number of conductors:
|
1,2,3,4,6
|
|
Conductor type
|
Strand or Solid
|
|
section area of each core, mm2 (Conductor Size AWG)
|
20, 24, 30, 32,36,40
|
|
material of insulation:
|
fiberglass, FEP, PTFE, PVC, silicone, kapton, etc
|
|
material of jacket:
|
fiberglass, FEP, PTFE, PVC, silicone, kapton, etc
|
|
shielding material:
|
SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
|
|
color:
|
ANSI, IEC, etType T stranded compensating cablec
|
|
quantity and lenght of coil, m(ft)
|
10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,
|
Specifications:
2×0.71mm fiber glass insulation K type red/yellow thermocouple wire
Model Number:KX
Color:Red+Yellow
Size:2×0.65mm2,2×0.71mm2
Conductor:Solid or Stranded
Insulation:Double layer glass fiber
Temperature range:Max 800C
Model Number:KX
Color:Red+Yellow
Size:2×0.65mm2,2×0.71mm2
Conductor:Solid or Stranded
Insulation:Double layer glass fiber
Temperature range:Max 800C
Features:
1.High Temperature Resistance
2.Excellent Insulating Property
3.Efficient Thermal Conductivity
4.Significant Energy-saving
5:K Type Red/Yellow Thermocouple Wire
2.Excellent Insulating Property
3.Efficient Thermal Conductivity
4.Significant Energy-saving
5:K Type Red/Yellow Thermocouple Wire
Application:
The power, metallurgical, oil, chemical, textile and other industrial and national defense research departments automation
Thermometer single point or multi-point connection.
Thermometer single point or multi-point connection.
