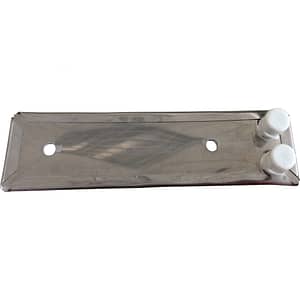

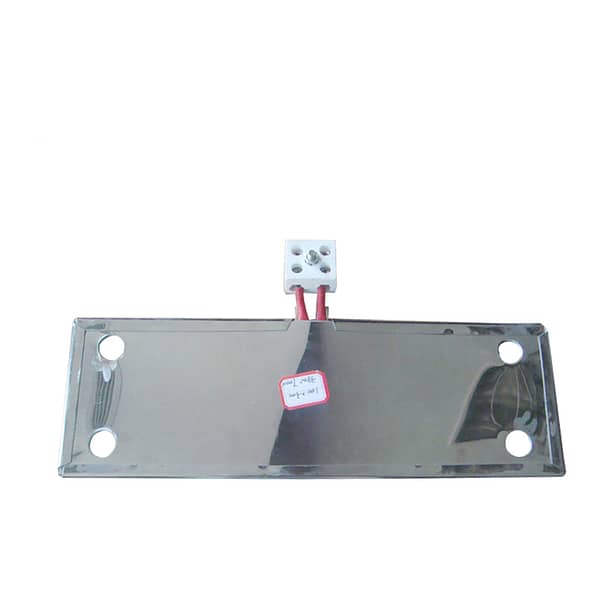

stainless steel 220v 450w mica heater plate electric heater element for hot stamping machine

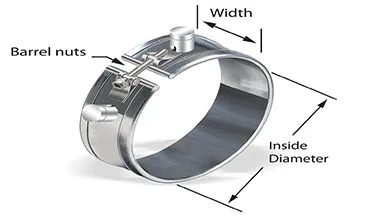

Mica heaters are efficient and economical solutions to the heating requirements of many applications. Mica heaters can attain a maximum sheath temperature of 900°F, but with different electrical termination styles, clamping mechanisms, and ability to accommodate holes and cutouts, mica band heaters are successfully used in many applications, but are mostly sought for in the plastics industry..

Material	Maximum Power	Features
Stainless Steel	3w/cm2	1.Accurate Temperature Control at the nozzle tip 2.Shape fulfilling contact with superior geometry 3.Perfect heat transfer as well with several holes and cut outs 4.Energy efficient 5.High operating safety and long working life
Brass	4.5w/cm2
Ceramic Insulation	6.5w/cm2

Applications

1.Injection Moulding / Extrusion Machines

2.Rubber Moulding /Plastic Process Machinery

3.Tooling & Die Heads

4.Packaging Machinery

5.Shoe Manufacturing Machinery

6.Test Equipment/Laboratory Equipment

7.Food Process Machinery

8.Drums containing solids or fluids

9.Vacuum Pumps and more…

Main Features

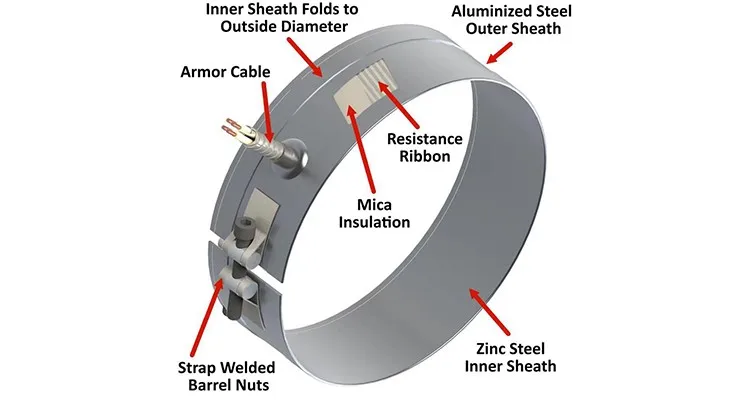

1, Stainless Steel sheath resists rust and high temperatures, and provides firm mechanical support.
2, Mica insulation prevents heat loss, thereby lowering energy costs.
3, High temperature nickel-chromium element wire
4, Reduce power consumption and conserve heat
5, High degree of flexibility
6, Uniform heat distribution
7, Various termination styles Customized

Key Technical Indexes

1.Use condition:environment temperature -20~+60 degree C,relative temperature<80%
2.Leakage current:<0.5MA
3.Insulation resistance:>=5M
4.Ground resistance:<0.1
5.Voltage resistance:no electric breakdown for 1 minute under 1500v
6.Temperature endurance: 200 degree C
7.Power deviation:+5%-10%
