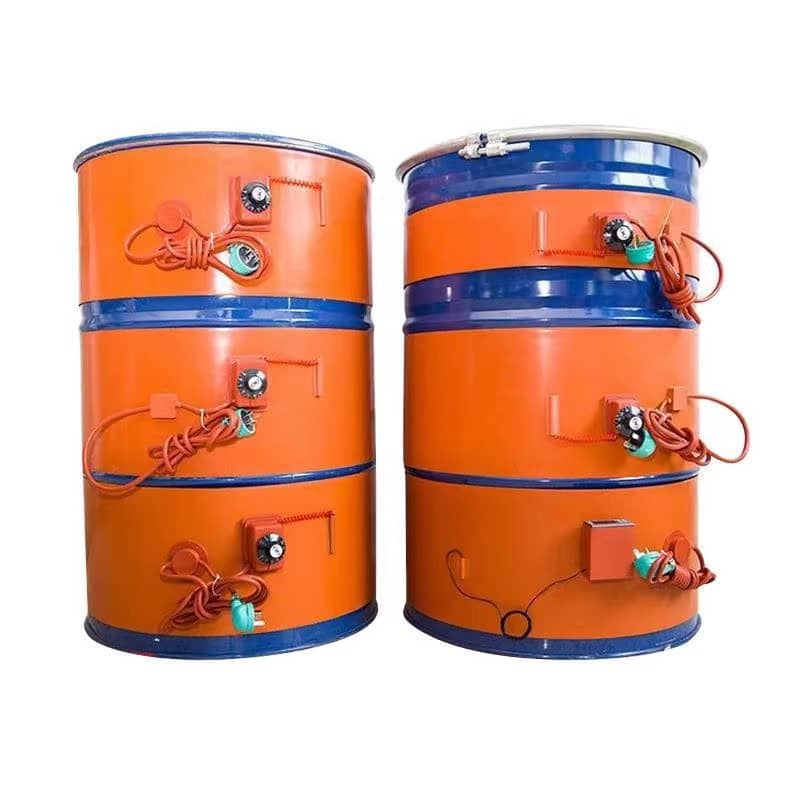

Supply standard 1740 *250 with temperature-controlled oil drum heater 200L oil drum insulation
Customized 12v-480v silicone rubber strip heater Electric heating element

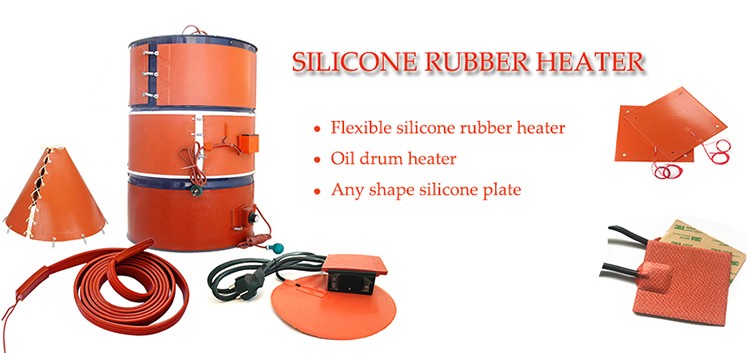

Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements.
Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little

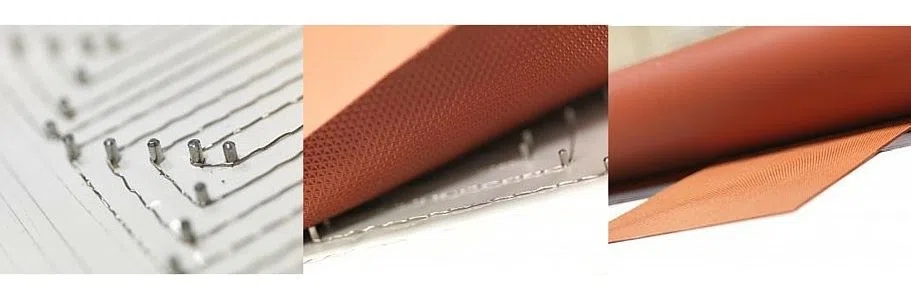

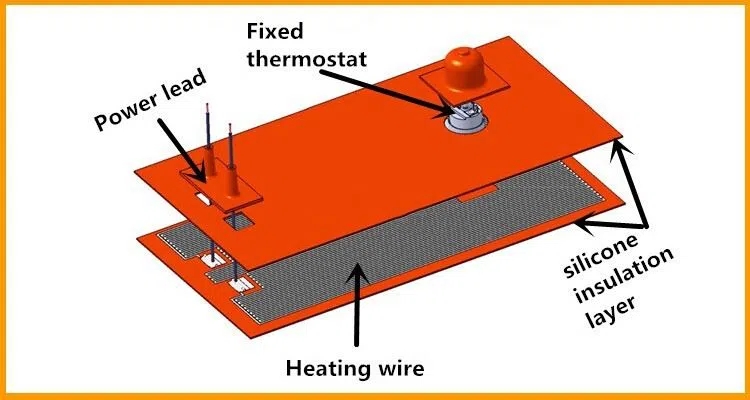

material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements.
Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little
material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
|
Technical Data:
|
|
|
Model
|
round,square, Rectangular (any shaped)
|
|
Maximum Operating Temperatures
|
250 °C
|
|
Thickness
|
1.5mm standard
|
|
Voltage
|
1.5-400V
|
|
Wattage
|
0.1-1w/cm2
|
|
Thermostat
|
with or W/O
|
|
Thermistor
|
with or W/O
|
|
3M self-adhesive
|
yes or no
|
|
Standard diameter tolerance
|
metric: -0.02 / -0.06 mm
|
|
High voltage resistance*
|
1500 V AC at > 24 V operation voltage
|
|
Thermocouple Location
|
type J / K / Ground wire
|
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available

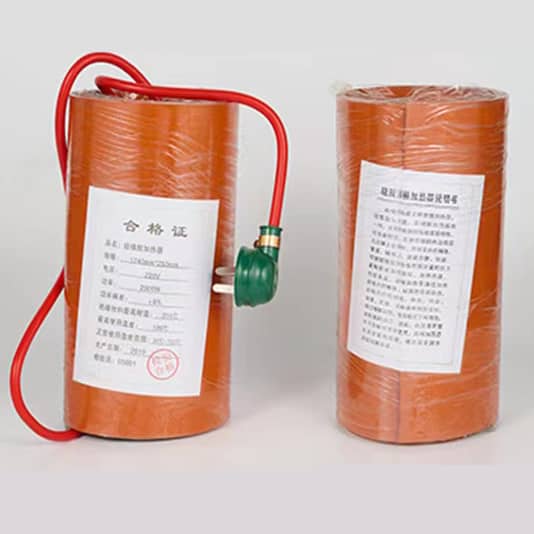

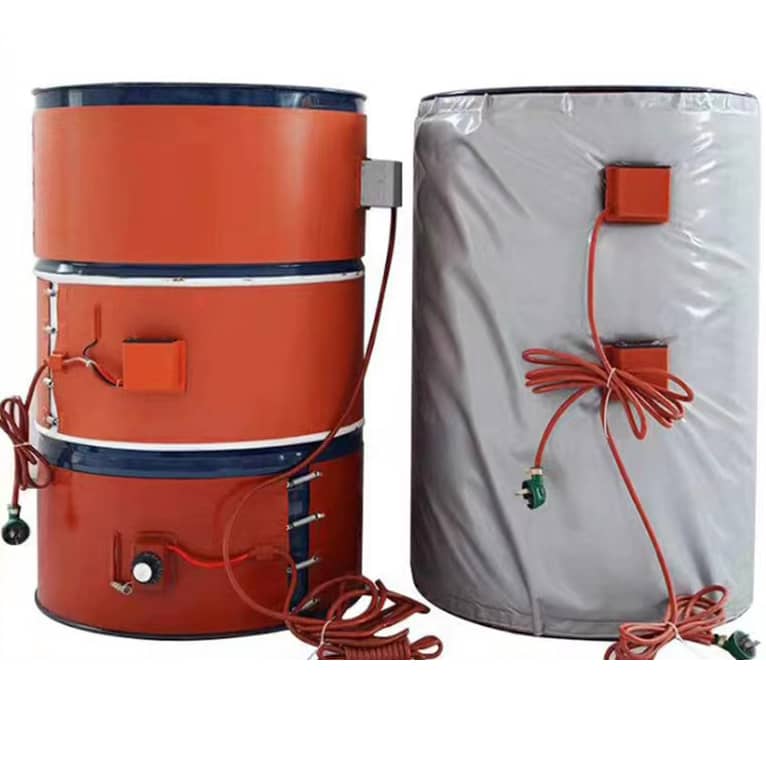

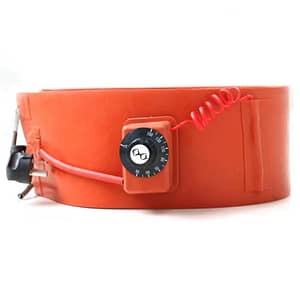

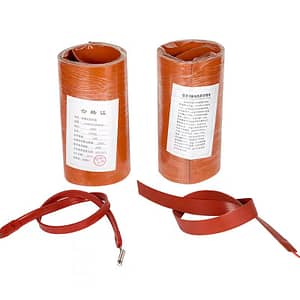

Standard Oil drum Silicone Rubber heater:
|
Volume
|
200Liter
|
200Liter
|
20Liter
|
20Liter
|
100Liter
|
|
OD(oil barrel)
|
580mm
|
580mm
|
300mm
|
300mm
|
580mm
|
|
Size
|
250x1740mm
|
125x1740mm
|
200x860mm
|
120x860mm
|
250x1250mm
|
|
Voltage & wattage
|
220v/2000w
|
220v/1000w
|
220v/800w
|
220v/500w
|
220V/1500W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
Weight(kg)
|
1.4
|
1
|
0.8
|
0.7
|
1.2
|
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
Liquefied gas cylinder heating belt
|
apacity
|
15KG
|
15KG
|
50KG
|
|
Size
|
100x970mm
|
150x970mm
|
120x1250mm
|
|
Voltage & wattage
|
220V/300W
|
220V/350W
|
220V/400W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
weight (KG)
|
0.5
|
0.6
|
0.8
|
Ammonia bottle heating blanket
|
Volume
|
47L
|
470L
|
930L
|
|
Size
|
1100x690mm
|
1600x800mm
|
2000x1000mm
|
|
Heating size
|
1000x600mm
|
1400x700mm
|
1600x900mm
|
|
Voltage & wattage
|
220V/3000W
|
220V/4000W
|
220V/6000W
|
|
Thermocuple
|
2pcs K thermocuple
|
3pcs K thermocouple
|
3pcs K thermocouple
|
|
Thermostat
|
2pcs
|
3pcs
|
3pcs
|

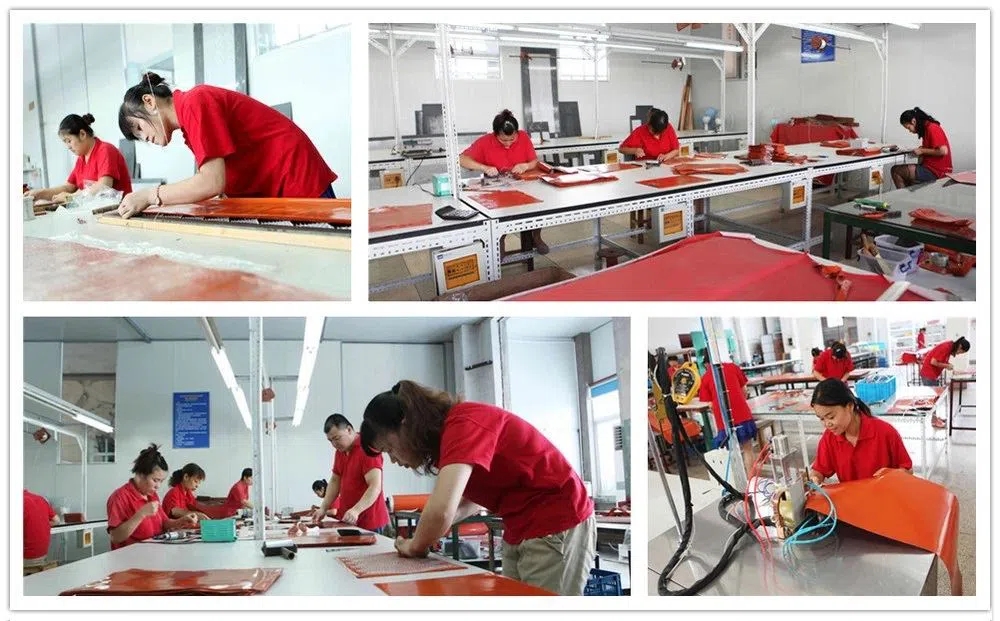

Production Steps:
Specifications:
• Sizes: up to 36″ wide (consult factory)
• Standard Thickness: 0.030″, 0.043″, 0.056”
• Maximum Operating Temperature: 400°F (204°C) intermittent
• Minimum Operating Temperature: -60°F (-50°C)
• Maximum Watt Density: 60 watts/in²
• Maximum Voltage: 600 volts
• Wattage Tolerance: standard +5% -10%
• Standard Thickness: 0.030″, 0.043″, 0.056”
• Maximum Operating Temperature: 400°F (204°C) intermittent
• Minimum Operating Temperature: -60°F (-50°C)
• Maximum Watt Density: 60 watts/in²
• Maximum Voltage: 600 volts
• Wattage Tolerance: standard +5% -10%
Mounting Methods:
• Pressure Sensitive Adhesive Surface (PSAS)
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
Advantages of Silicone Heat Tape:
•Dimensional stability
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
