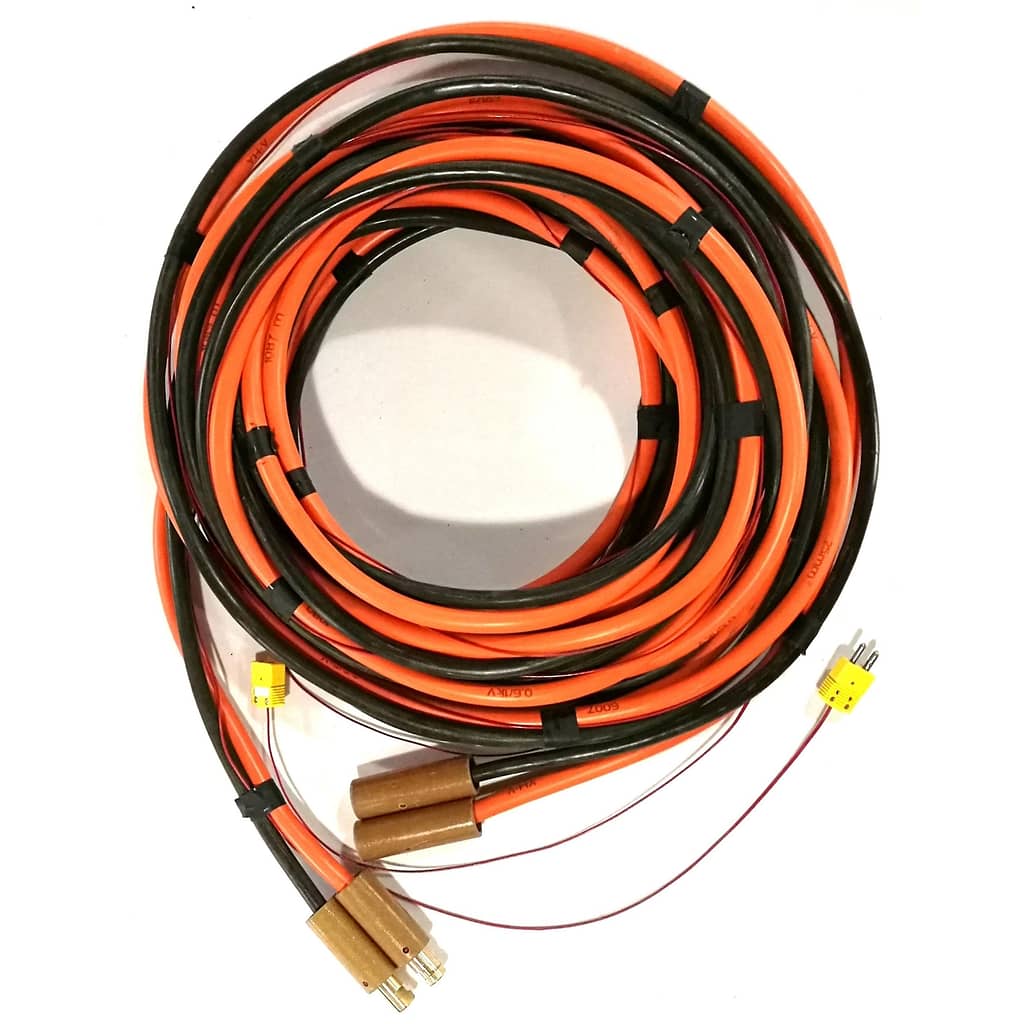

Triple-Cable Set with Plug & Socket Using 2 x 25mm2 Heater Distribution Cable and 1 x Compensating Cable, this PVC insulated Triple-Cable Set is for use with Heat Treatment Units to connect them to the heaters and thermocouple. Fitted with 300A Brass Connector Plugs and Sockets and Thermocouple Plug and Socket, this Triple-Cable Set is sold in 30m lengths.
Cable Length: 15m,25m, 30m or According to the customer request
Total Length including Brass Connectors: 3290mm
Weight: 22kg
Materials: 2 sets of 30m x 25mm2 Heater Distribution Cable (double insulated), 30m x Compensating Cable,
2 x 300A Camlock – Complete Set (Male), 2 x 300A Brass Connector Plug (Male Camlock) Complete Set,
2 x 300A Brass Connector Socket (Female Camlock) Complete Set) and 2 x Thermocouple Socket – In-Line (Female)
Splitter cable to heater
Material: 10mm² 85A welding cable, PVC or Rubber double insulated
60A female camlock connector
300A male camlock connector
Specification:
-3 way splitter cable set
CABLES & WIRES
A variety of cables and wires are used throughout the heat treatment process; either for thermocouples/temperature control or recording, or to supply electrical energy throughout the circuits.
Nickel-Chrome wires and Nickel Cold Tail wire come in rolls of 500m while the Thermocouple Wires, Heater Distribution Cables and Compensating Cables all come in rolls of 100m.
4-bank Nickel-Chrome Iron Wire is supplied with 10pc per set whilst Splitter Cables and Triple Cable Sets are supplied in 1m and 30m lengths respectively.
