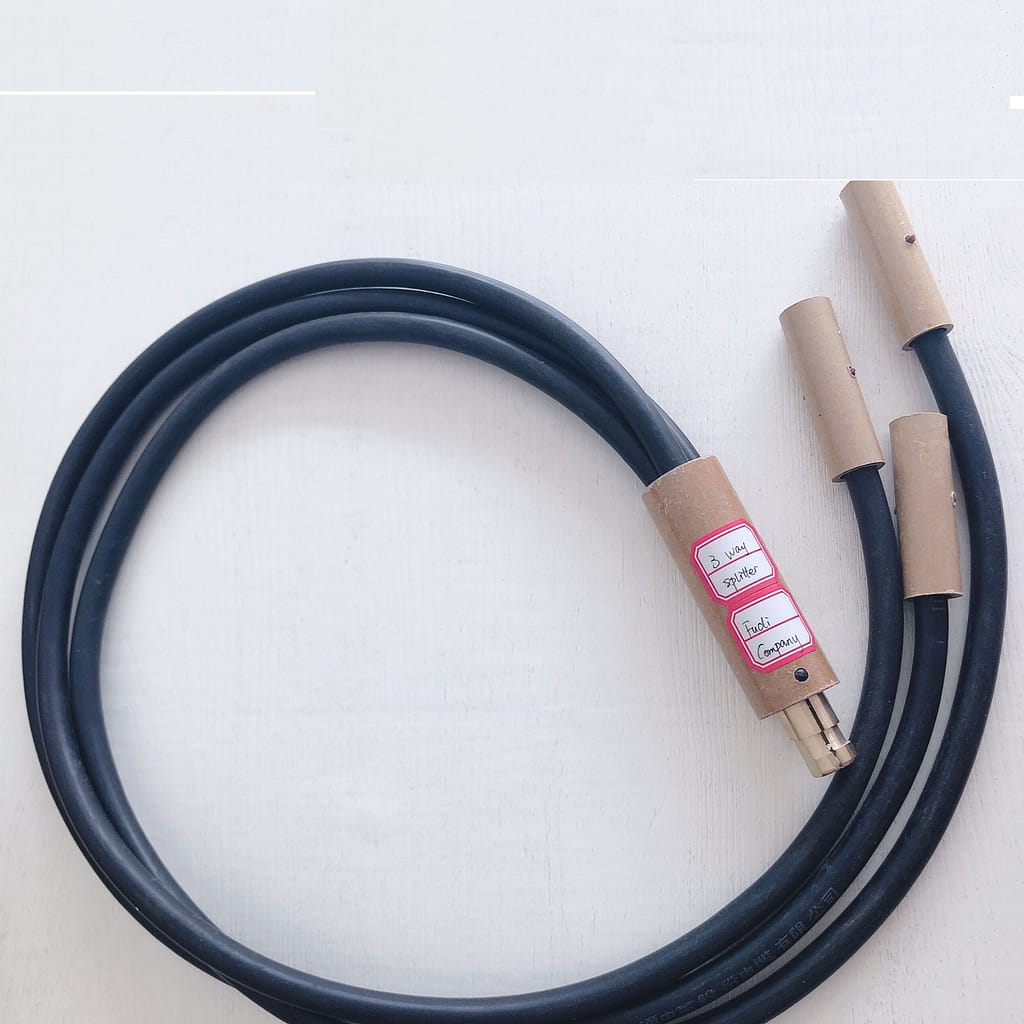

Used to connect 3 heating elements in parallel to Triple Cable Sets and allow for the control of multiple heating elements from one single control output. This allows for accurate zonal temperature control. Measuring 1m in length, this splitter cable has 1 x 300A Brass Connector Plug (Male Camlock) Complete Set and 3 x 60A Brass Connector Socket (Female Camlock) Complete Set.
Cable Length: 1000mm (1m)
Total Length including Brass Connectors: 1080mm
Weight: 1.2kg
Materials: WI0901 (1m x 25mm2 Heater Distribution Cable (double insulated)), 1 x CA0500 (300A Brass Connector Plug (Male Camlock) Complete Set), 3 x CA0800 (60A Brass Connector Socket (Female Camlock) Complete Set)
Wire Diameter: 25mm2
Stocked in 2,3 and 4 way variations as standard, they are also available in both black or orange sheathing.
1. 2 WAY SPLITTER BLACK 16mm²(or 10mm ²) / 1m
2. 2 WAY SPLITTER ORANGE 16mm² (or 10mm ²)/ 1m
3. 3 WAY SPLITTER BLACK 16mm² (or 10mm ²)/ 1m
4. 3 WAY SPLITTER ORANGE 16mm ² (or 10mm ²)/ 1m
5. 4 WAY SPLITTER BLACK 16mm ² (or 10mm ²)/ 1m
6. 4 WAY SPLITTER ORANGE 16mm ² (or 10mm ²)/ 1m
Should you have any inquiry, welcome contact us with no hesitate
