Whole oven heating element induction portable silicone rubber heater

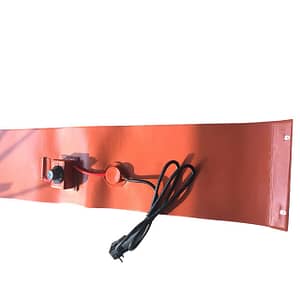

Customized 12v-480v silicone rubber strip heater Electric heating element

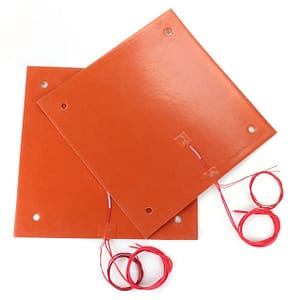

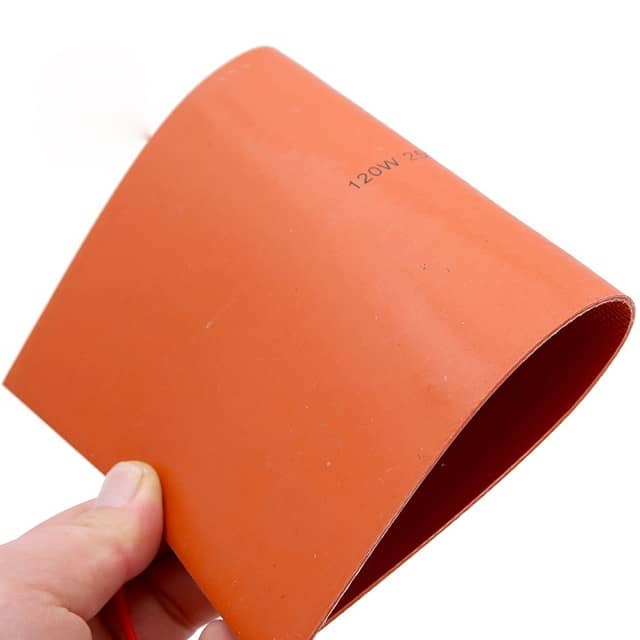

Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
|
Model
|

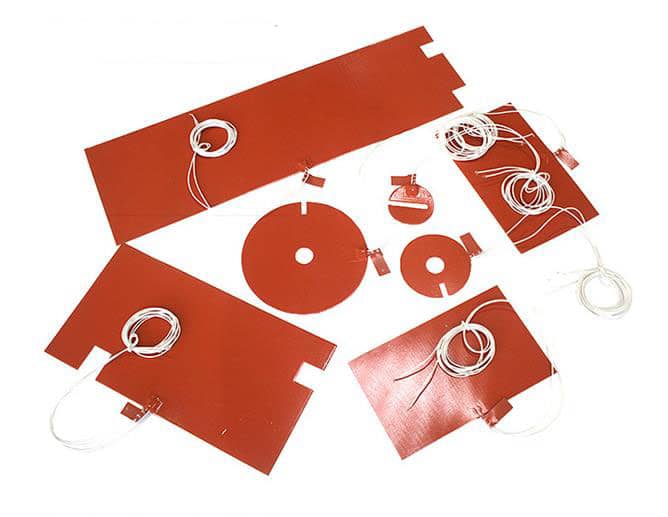

round,square, Rectangular (any shaped)
|
|
Maximum Operating Temperatures
|
250 °C
|
|
Thickness
|
1.5mm standard
|
|
Voltage
|
1.5-400V
|
|
Wattage
|
0.1-1w/cm2
|
|
Thermostat
|
with or W/O
|
|
Thermistor
|
with or W/O
|
|

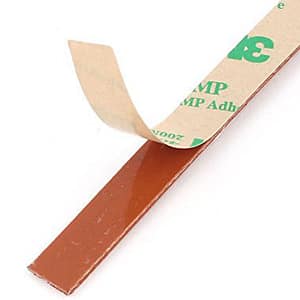

3M self-adhesive
|
yes or no
|
|
Note:
1.We support OEM order,and print Brand or Logo on surface. 2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.) 3.Any shaped is available |
|

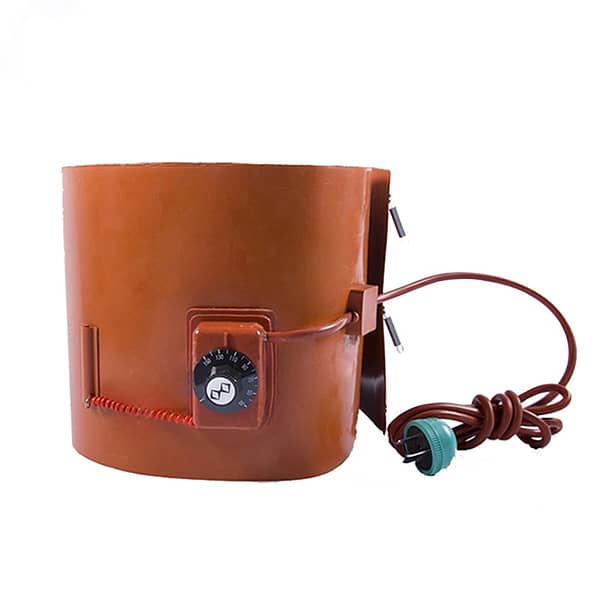

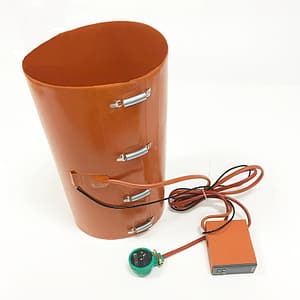

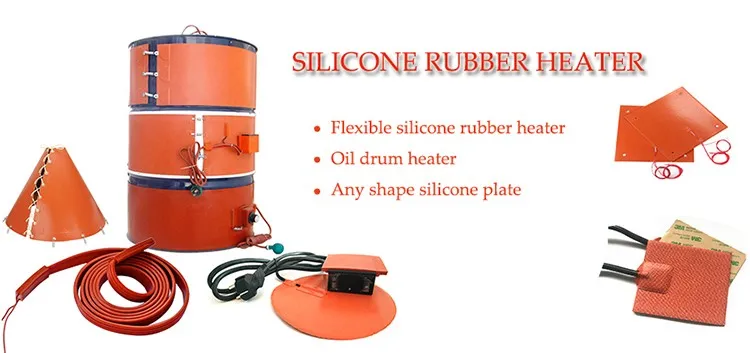

Standard Oil drum Silicone Rubber heater:
|
Volume
|
200Liter
|
200Liter
|
20Liter
|
20Liter
|
100Liter
|
|
OD(oil barrel)
|
580mm
|
580mm
|
300mm
|
300mm
|
580mm
|
|
Size
|
250x1740mm
|
125x1740mm
|
200x860mm
|
120x860mm
|
250x1250mm
|
|
Voltage & wattage
|
220v/2000w
|
220v/1000w
|
220v/800w
|
220v/500w
|
220V/1500W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
Weight(kg)
|
1.4
|
1
|
0.8
|
0.7
|
1.2
|
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
Liquefied gas cylinder heating belt
|
Capacity
|
15KG
|
15KG
|
50KG
|
|
Size
|
100x970mm
|
150x970mm
|
120x1250mm
|
|
Voltage & wattage
|
220V/300W
|
220V/350W
|
220V/400W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
weight (KG)
|
0.5
|
0.6
|
0.8
|
Ammonia bottle heating blanket
|
Volume
|
47L
|
470L
|
930L
|
|
Size
|
1100x690mm
|
1600x800mm
|
2000x1000mm
|
|
Heating size
|
1000x600mm
|
1400x700mm
|
1600x900mm
|
|
Voltage & wattage
|
220V/3000W
|
220V/4000W
|
220V/6000W
|
|
Thermocuple
|
2pcs K thermocuple
|
3pcs K thermocouple
|
3pcs K thermocouple
|
|
Thermostat
|
2pcs
|
3pcs
|
3pcs
|
 |
 |
|
|
Specifications:
• Sizes: up to 36″ wide (consult factory) • Standard Thickness: 0.030″, 0.043″, 0.056” • Maximum Operating Temperature: 400°F (204°C) intermittent • Minimum Operating Temperature: -60°F (-50°C) • Maximum Watt Density: 60 watts/in² • Maximum Voltage: 600 volts • Wattage Tolerance: standard +5% -10% |
 |
 |
Mounting Methods: • Pressure Sensitive Adhesive Surface (PSAS)
• Silicone contact cement kit • Field applied adhesive • Mechanical fasteners • Factory bonding |
Different type and accessories used by silicone rubber pad heater
