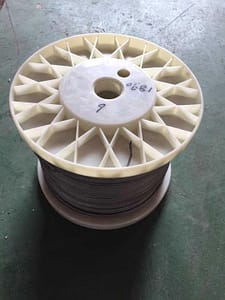

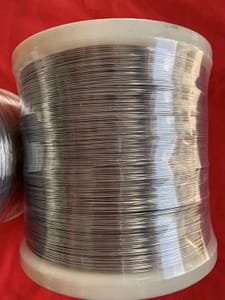

19-strand Nickel-Chrome Wire (80/20) is essential for resistor elements in high temperature applications and operates at temperatures up to 1000°C. This wire has 19 strands and can be used in our Flexible Ceramic Pad Heaters and Flexible Insulated Preheaters. Each roll has 500m length of wire.
Specification:
- Dimensions of Roll: 197 H x 248 W x 248 D mm
- Length of Wire: 500m
- Weight: 21kg
- Materials: 80% Nickel, 20% Chrome
- Wire Diameter: 2.83mm
- Maximum Working Temperature: 1000°C

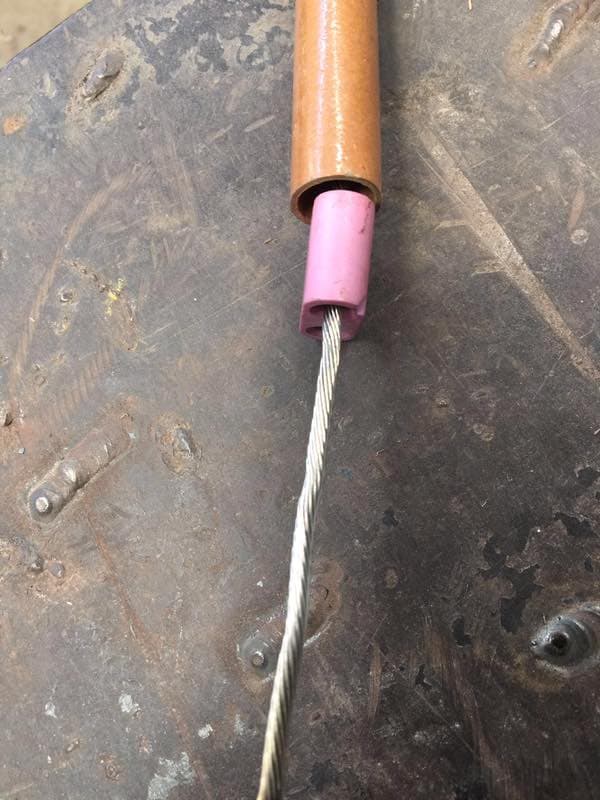

- No. of Strands: 19 x 0.56mm, 19 strands twisted together
Related type for choose:
- Heater core wire—80/20 Ni/cr 19 Strand
- Heater core wire—80/20 Ni/cr 37 Strand
- Heater core wire—60/16 Ni/cr 19 Strand
- 212 Nickel cold trail wire 19 Strand
- High temperature wire ( up to 1300 Degrees Centigrade )
A variety of cables and wires are used throughout the heat treatment process; either for thermocouples/temperature control or recording, or to supply electrical energy throughout the circuits.
Nickel-Chrome wires and Nickel Cold Tail wire come in rolls of 500m while the Thermocouple Wires, Heater Distribution Cables and Compensating Cables all come in rolls of 100m.
4-bank Nickel-Chrome Iron Wire is supplied with 10pc per set whilst Splitter Cables and Triple Cable Sets are supplied in 1m and 30m lengths respectively.
