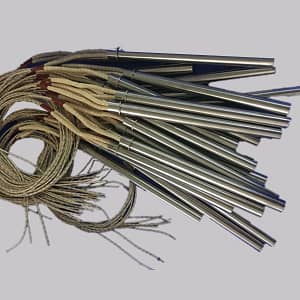

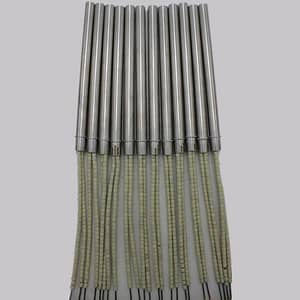

Cartridge Heater For 3D Glass Bending Machine

The electric cartridge heater for 3D glass bending machine belongs to single head heating pipe with high surface load. Its high surface load directly determines the material selection of other tubes. The imported high temperature magnesia powder is used for internal insulation to increase its…

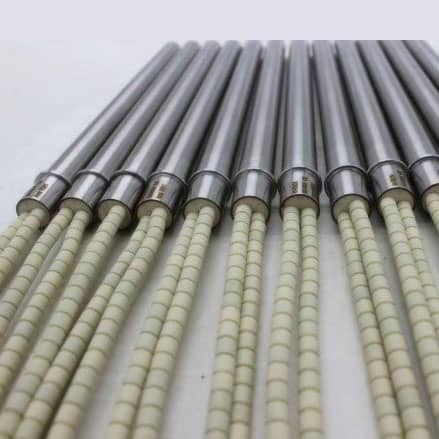

The electric cartridge heater for 3D glass bending machine belongs to single head heating pipe with high surface load. Its high surface load directly determines the material selection of other tubes. The imported high temperature magnesia powder is used for internal insulation to increase its insulation performance. At the same time, the lead wire is made of nickel stranded wire with ceramic beads and high temperature resistant lead.

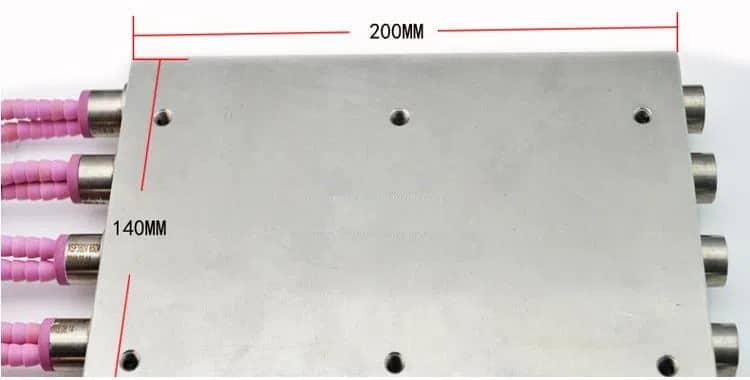

Through the self-developed intelligent optimization algorithm, Fudi electric quickly find out the best hole location of the soaking plate and the optimal power distribution of the heating pipe, optimize the temperature difference in the effective zone of the soaking plate to the theoretical limit, so that the graphite mold is evenly heated, and greatly provides the yield of 3D curved glass molding.

202009021624377fed8bced46c4304be6adc52a7e227da



Now we have developed the cartridge heater of the fourth generation 3D bending machine. The biggest advantage of the product is that the power will be automatically adjusted (i.e. variable power heating mode) with the increase of temperature, which can effectively reduce the loss of heat energy and make the whole machine more energy-saving and environmental protection.



The color of insulating ceramic is white or red available.

Maximum service temperature: 900 ° C

The maximum service temperature is the temperature of the armored pipe. Please pay attention to the heat resistance temperature (500 ° C) of the conductor. The wire must be led out from the mounting hole.



The following parameters are for reference only, please refer to the actual customized specifications



Diameter

length

voltage

power

Power density

16mm

225/290mm

220V/380V

850/950/1000W

based on the power density of the heating   part

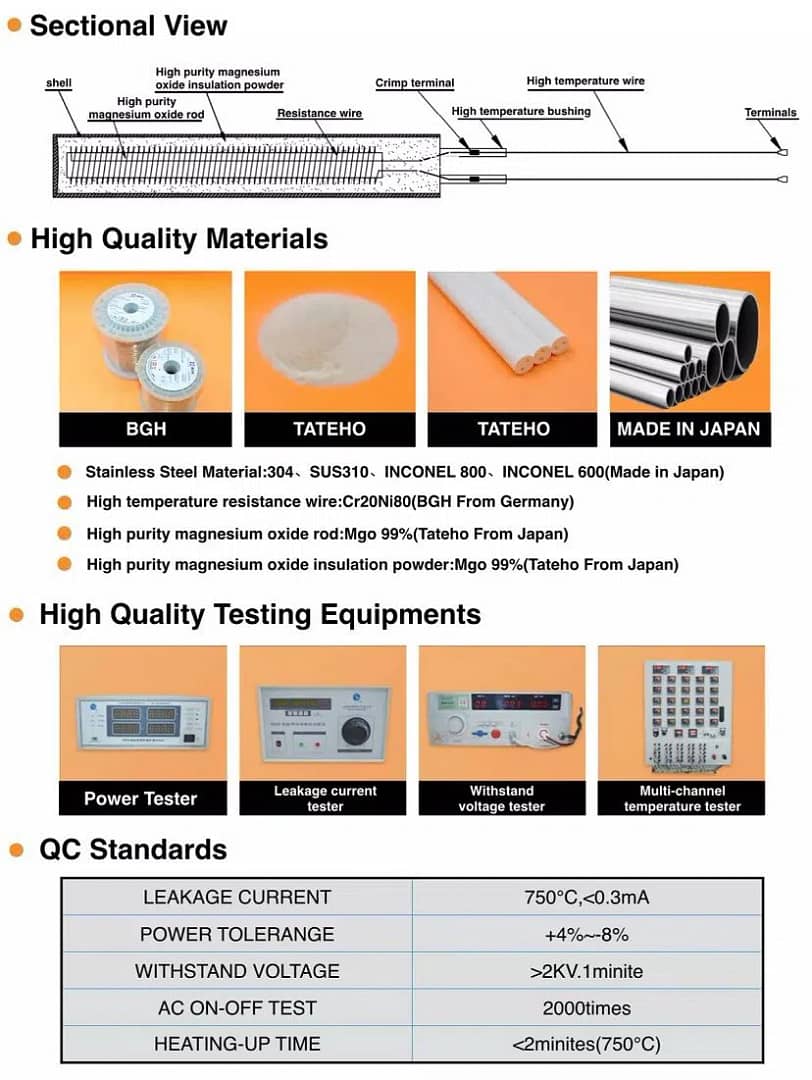

Cartridge Pencil Heater3

Precision testing quality: every product must be tested accurately by Jaye before sending out from our factory, so as not to let any defective cartridge heater flow into the market. Jaye only make and provide the high quality cartridge heaters.
